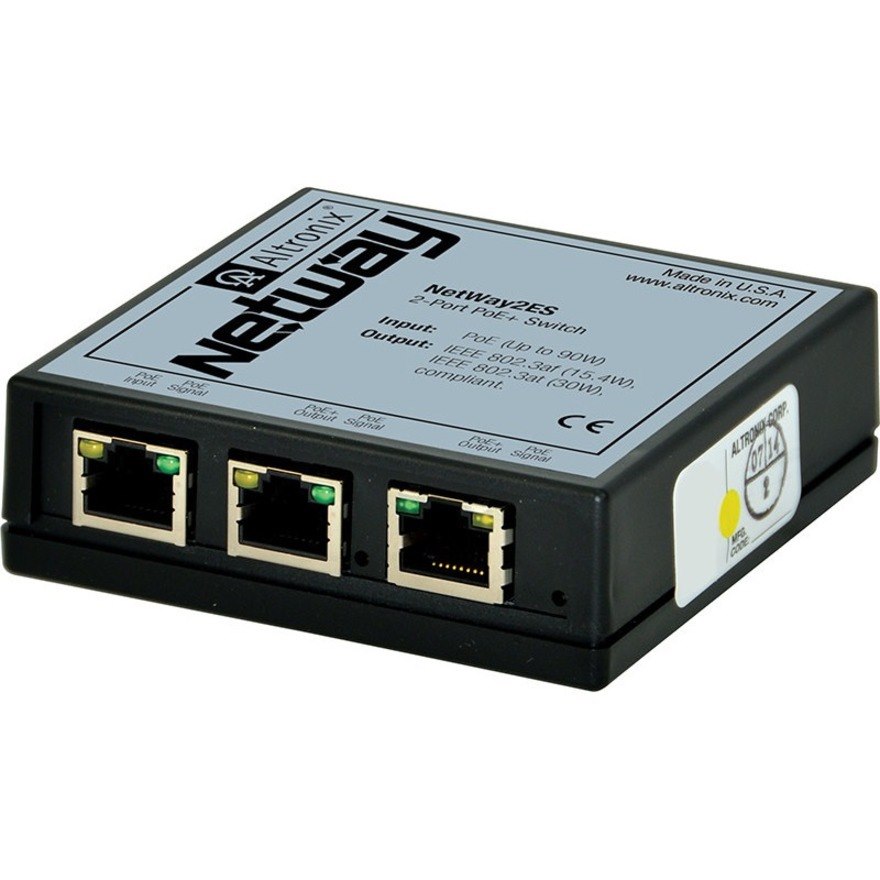

Altronix NetWay2ES PoE-powered 2 port PoE/PoE+ switch is designed for installation at the IDF (Intermediate Distribution Frame) to deploy IP devices. NetWay2ES allows for system expansion by accommodating up to two (2) IP cameras/devices over a single CAT5 or higher structured cable. PoE is passed from a midspan injector, typically located at the MDF (Main Distribution Frame).
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- NetWay
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 2
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 2 x Fast Ethernet PoE+
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-T
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 60 W
- Power Source
- PoE
- Physical Characteristics
- Form Factor
- Wall Mountable
- Shelf Mountable
- Height
- 1"
- Width
- 3.5"
- Length
- 3.5"
- Weight (Approximate)
- 4 oz
- Miscellaneous
- Country of Origin
- United States
- NDAA Compliant
- Yes
