- General Information
- Manufacturer
- Ubiquiti Inc.
- Manufacturer Website Address
- http://www.ui.com
- Brand Name
- Ubiquiti
- Product Line
- UniFi
- Product Type
- Ethernet Switch

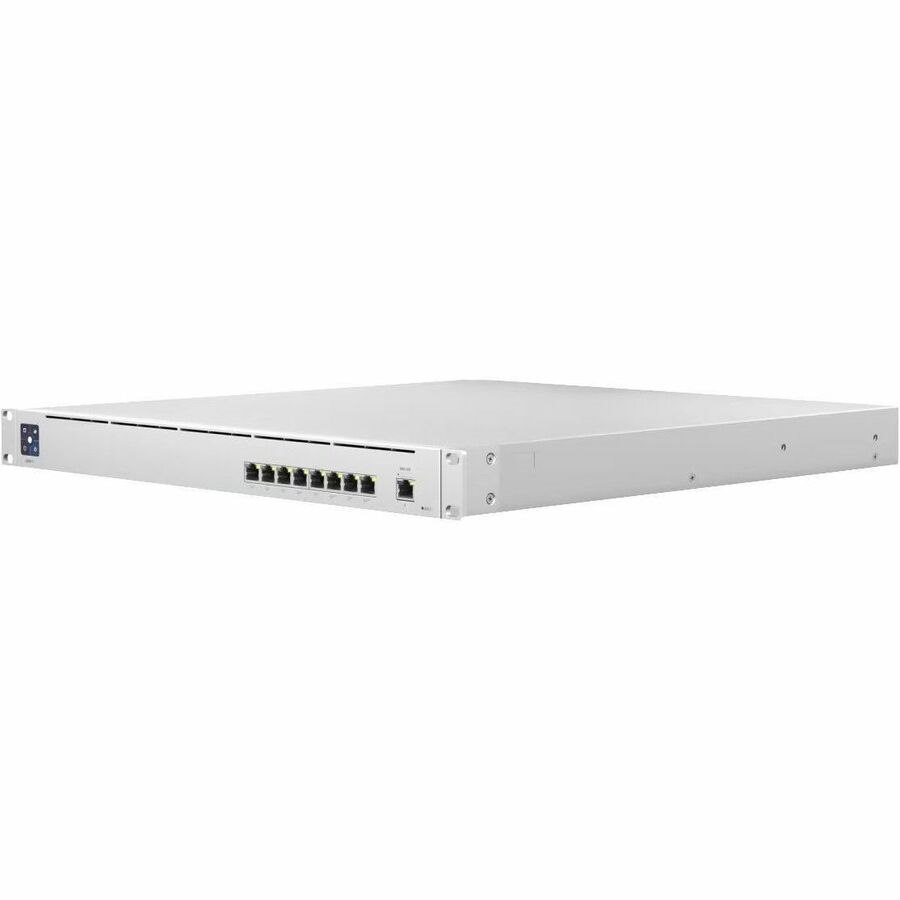

Infrastructure PoE Switch with Uninterruptible Power Supply.
UniFi Mission-Critical Switch delivers power to vital network devices while maintaining high reliability via multiple powering options: internal battery backup, AC power, and external 48VDC battery (not included). The managed Layer 2 switch offers nine Gigabit RJ45 ports: four with 802.3bt PoE++ to power UniFi Access devices, four with 802.3af/at PoE to power UniFi APs, switches, or cameras, and one for uplink to the gateway. Two AC outputs power 100-120V devices, including the modem and gateway.
The 1.3" touchscreen provides current switch states and the necessary information you need for quick diagnosis. AR (Augmented Reality) switch management simplifies network changes.
The UniFi Network Controller and UniFi Network mobile app allows admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
- Interfaces/Ports
- Total Number of Network Ports
- 9.0
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x Gigabit Ethernet PoE+
- 4 x Gigabit Ethernet PoE++
- 1 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 120 W
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Power Consumption
- 240 W
- Physical Characteristics
- Product Material
- Steel
- Height
- 1.7"
- Width
- 18.9"
- Depth
- 17.4"
- Weight (Approximate)
- 19.84 lb
- Miscellaneous
- Application/Usage
- Network
