- General Information
- Manufacturer
- Ventev Innovations
- Manufacturer Website Address
- http://www.ventevinnovations.com
- Brand Name
- Ventev
- Product Type
- Antenna Cable

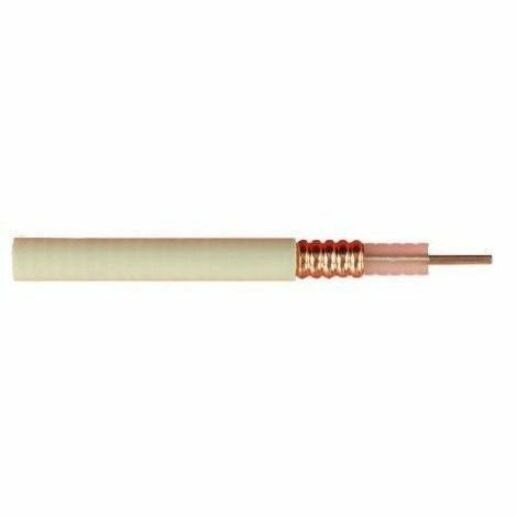

The Ventev Low Loss Air-Dielectric Plenum Cable is ideal for multiple RF signals typical in plenum-space feedlines within buildings. All Ventev Plenum cable is UL Listed and with a CMP rating. The solid outer conductor of this cable creates an uninterrupted shield that maximizes protection against system interference. The solid inner conductor creates excellent intermodulation performance and low VSWR, high-efficiency signal transfer. The Ventev cable is compatible with the top manufacturer's connectors and terminates with standard tooling - no special equipment is needed.
- Warranty
- Limited Warranty
- 7 Year
- Technical Information
- Cable Type
- Coaxial
- Cable Length
- 1 ft (0.30 m)
- Connector Type on First End
- Bare Wire
- Shielding
- Yes
- Jacket Type
- Plenum
- CMP
- Device Supported
- Antenna
- Features
- Interference Protection
- Tensile Strength
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Insulation Material
- Polyethylene
- Material Details
Inner Conductor - Copper Clad Aluminum wire
Outer Conductor - Ring Corrugated Copper
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
