- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- PoE++ Splitter

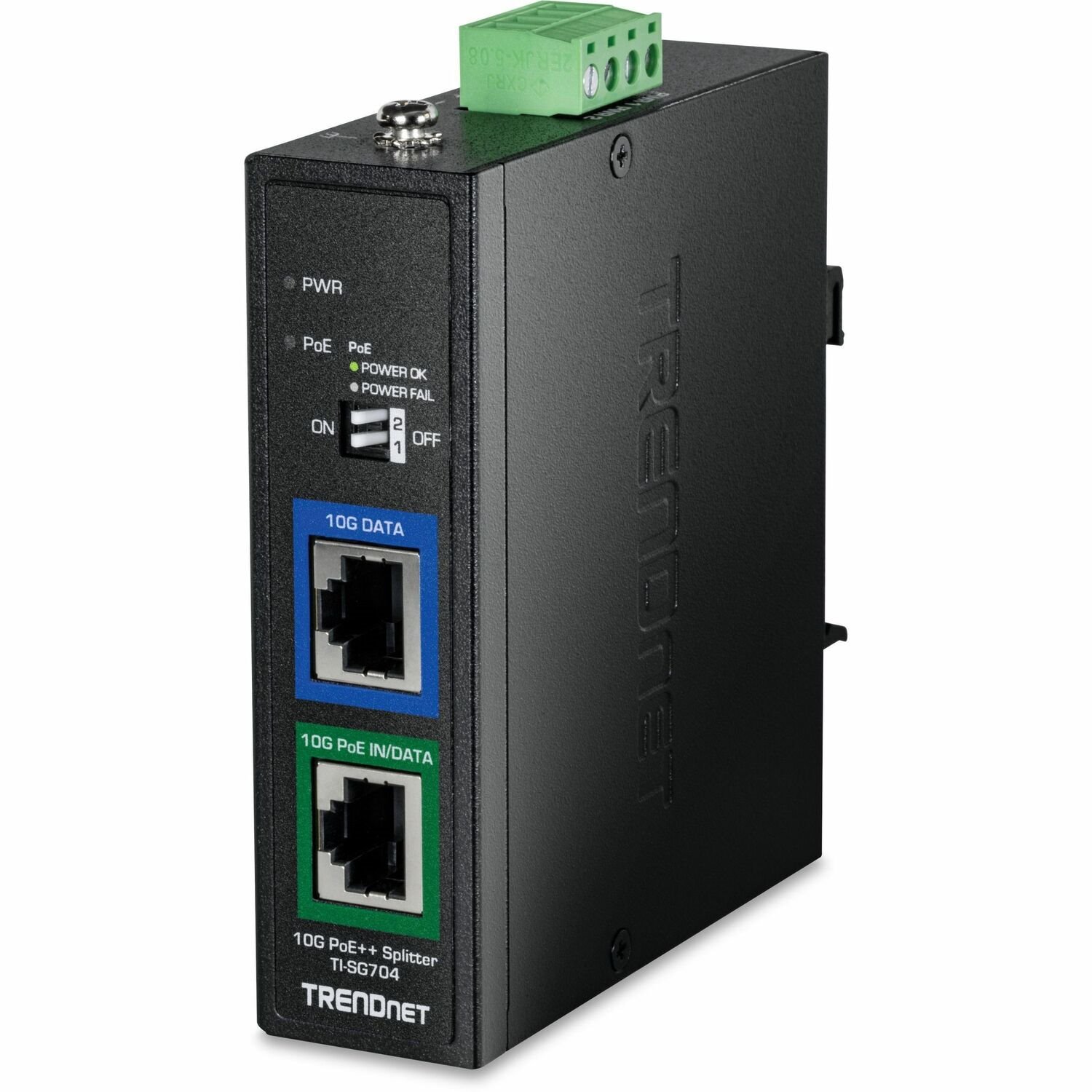

TRENDnet's Industrial 10G PoE++ Splitter, model TI-SG704, networks a non-PoE device by using a 10G PoE++ connection and splitting it into separate DC power and data sources. The industrial 10G PoE++ splitter can power up to two devices from a single PoE source. A convenient DIP switch on the industrial PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The industrial 10G PoE++ splitter's multiple power outputs provide greater device compatibility
PoE++ Powered
No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.) away.
Adjustable Voltage Output
Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.25A) to accommodate varying non-PoE device power requirements.
Flexible Mounting Options
The industrial 10G PoE++ splitter's wall and DIN-Rail mounting options provide better setup flexibility and accommodate most installation scenarios.
FEATURES | 10G Ethernet
1 x 10G PoE++ in port, 1 x 10G out port
Dual DC Power Output Terminal Block
The PoE++ splitter includes a dual DC power output terminal block, powering up to two devices
DIN-Rail Mountable
DIN-Rail mountable design of the industrial 10G PoE++ splitter fits a standard TS35 DIN-Rail
PoE++ Powered
No power adapter necessary; the industrial 10G PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.) away
Industrial Design
Equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° to 75° C (-40° to 167° F) for industrial environments
Adjustable Voltage Output
Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.25A) to match non-PoE device power requirements
Wall Mountable
Wall mountable design of the industrial 10G splitter accommodates most installation scenarios
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Protection Type
- ESD Protection
- Surge Protection
- Power Description
- Minimum Output Voltage
- 12 V DC
- Maximum Output Voltage
- 48 V DC
- Minimum Output Current
- 1.25 A
- Maximum Output Current
- 2.30 A
- Maximum Output Power
- 90 W
- Interfaces/Ports
- Input Ports
- 1 x 10 Gigabit PoE++
- Output Ports
- 1 x 10 Gigabit Ethernet
- 1 x Terminal Block
- Physical Characteristics
- Form Factor
- DIN Rail/Wall Mountable
- Height
- 3.9"
- Width
- 3.5"
- Depth
- 1.1"
- Weight (Approximate)
- 15.24 oz
- Miscellaneous
- Package Contents
- Industrial 10G PoE++ Splitter
- Removable Terminal Block
- DIN-Rail and Wall-mount Kit
- Certifications & Standards
- NDAA
- CE
- FCC
- ETL
- LVD
- IP50
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-31)
- Vibration (IEC 6 0068-2-6)
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz
- IEEE 802.3an
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
