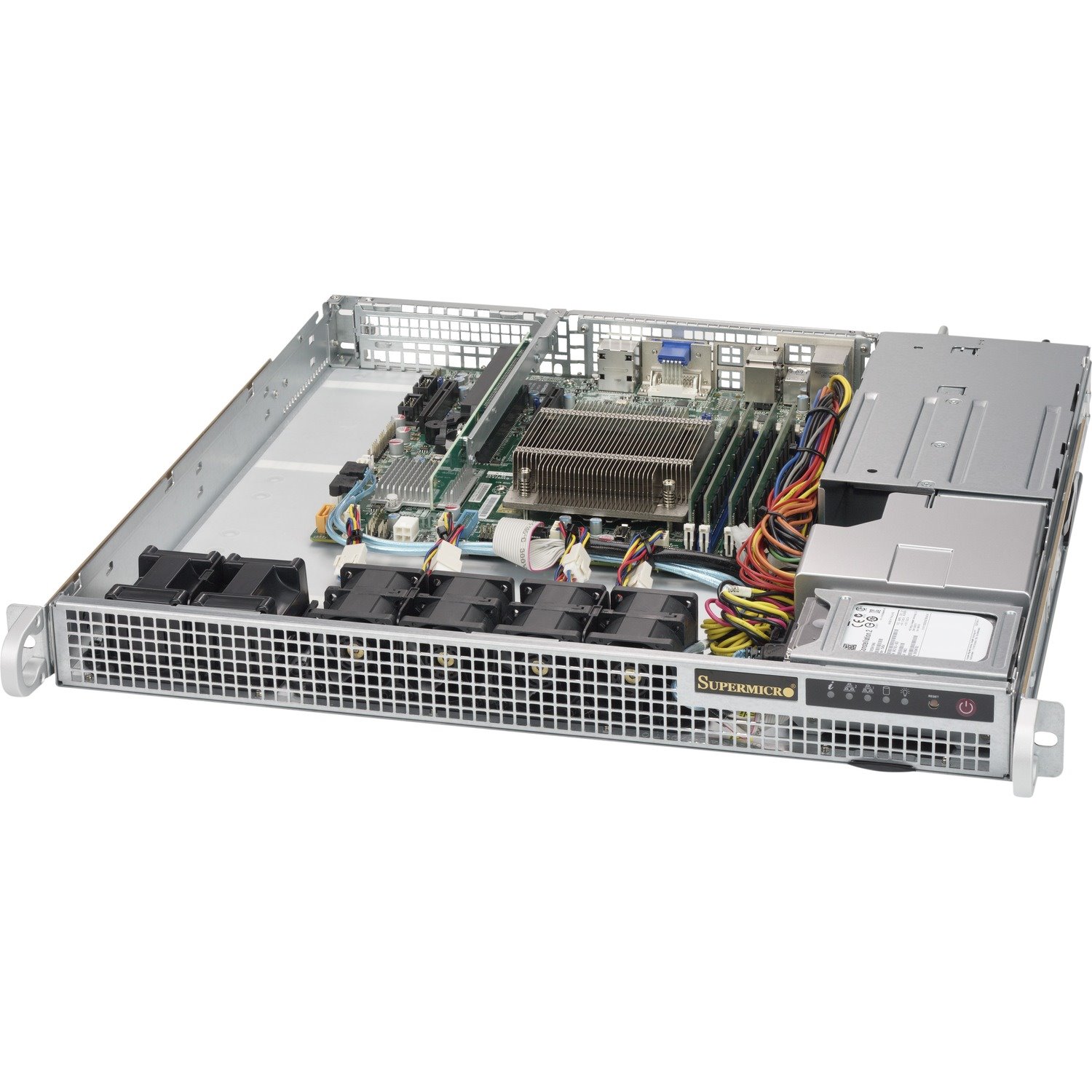

Built to deliver long lifespan performance for the latest in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers and the newest Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability.
- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Xeon
- Core i3
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C236
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2133/PC4-17000
- Total Number of Memory Slots
- 4.0
- Controllers
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- Display & Graphics
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- AST2400
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Number of PCI Express x8 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.0 Ports
- 2
- Number of SATA Interfaces
- 2
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 350 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 14.4"
- Weight (Approximate)
- 8.44 lb
- Miscellaneous
- Package Contents
- SuperServer 5019S-ML (Black)
- 1 x Super X11SSH-F Motherboard
- 1 x 1U Chassis
- 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
- 1 x 35CM end to end, SATA CABLE, PB FREE, 26AWG, flat
- 1 x 5019S-ML,QRG,HF,RoHS/REACH
- 1 x RSC-RR1U-E16 with PCI-E x16 output
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply
- Environmentally Friendly
- Yes
