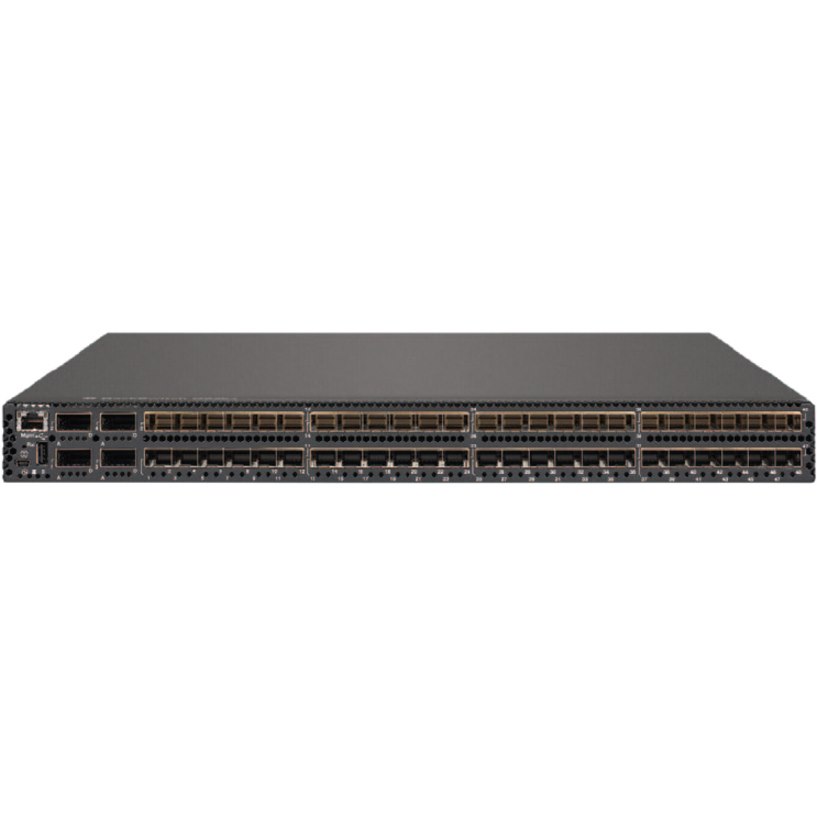

Designed with top performance in mind, the IBM RackSwitch G8264 and IBM RackSwitch G8264T are ideal for today's big data, cloud and optimized workloads. Both are enterprise-class and full-featured data-center switches that deliver line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data-center grade buffers keep traffic moving. Redundant power and fans along with numerous high availability features equip the switches for business-sensitive traffic. The G8264 and G8264T support IBM VMready technology, an innovative, standards-based solution to manage virtual machines (VMs) in small to large-scale data center and cloud environments.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Type
- Layer 3 Switch
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Token Ring Port
- No
- LRE Port
- No
- Number of Network (RJ-45) Ports
- 48
- Port/Expansion Slot Details
- 48 x 10 Gigabit Ethernet Network
- 4 x 40 Gigabit Ethernet Expansion Slot
- Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10GBase-T
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- QSFP+
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- VLAN
- DHCP
- SNMP v1/v2c/v3
- Sflow
- IGMP v1/v2/v3
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Width
- 17.3"
- Depth
- 20.3"
- Weight (Approximate)
- 0.39 oz
