- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- SM24TBT2DPB
- Product Type
- Ethernet Switch

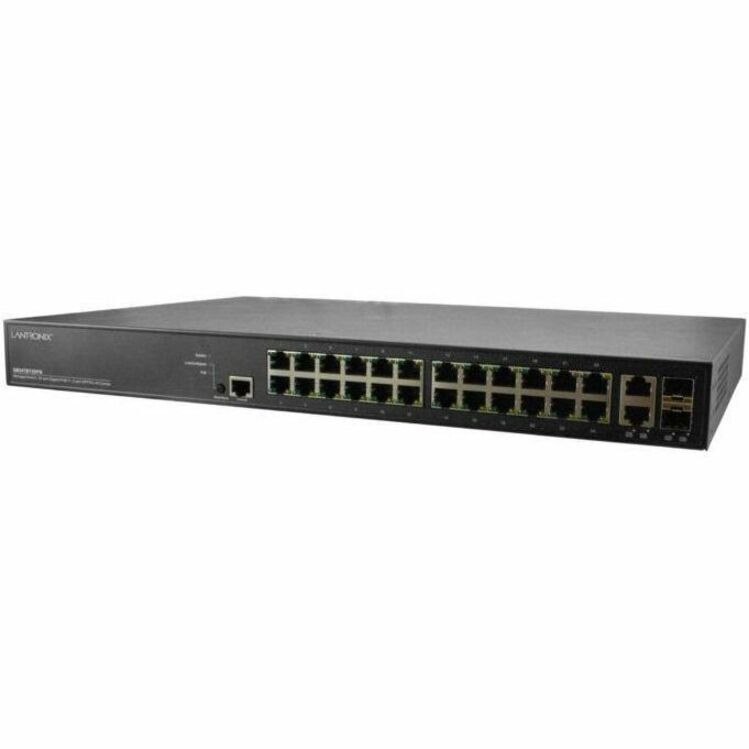

This switch is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and 2 additional 100/1000Mbps dual speed SFP/RJ-45 combo ports.Integrated with Lantronix's Percepxion cloud based IoT edge solutions platform. NDAA Compliant, TAA Compliant
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- Hot-swappable
- VLAN Segmentation
- DHCP Relay
- Access Control List
- Energy Efficient
- Strict Priority Queuing (SPQ)
- Interfaces/Ports
- Total Number of Network Ports
- 26
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE++
- 2 x Gigabit Ethernet TP/SFP Combo
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP (mini-GBIC)
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 4
- Networking Standards
- IEEE 802.3
- IEEE 802.3x
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.3af
- IEEE 802.3z
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.3at
- IEEE 802.3ae
- IEEE 802.1w
- IEEE 802.1ad
- IEEE 802.3bt
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Power Consumption
- 52 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 11.8"
- Weight (Approximate)
- 11.29 lb
- Miscellaneous
- Package Contents
- SM24TBT2DPB Ethernet Switch
- 19" Rack Mount Bracket
- 1 x Secondary AC Modular Power Supply
- Application/Usage
- Network
- Digitial Signage
- Security
- Surveillance
- POS System
- Thin Client
- PoE Lighting
- Enterprise
- IP Surveillance Network
- Wireless Access Point
- Traffic
- IoT Devices
- Building
- IP Camera
- Certifications & Standards
- FCC Class A
- CE
- UL62368-1
- TAA Compliant
- Yes
