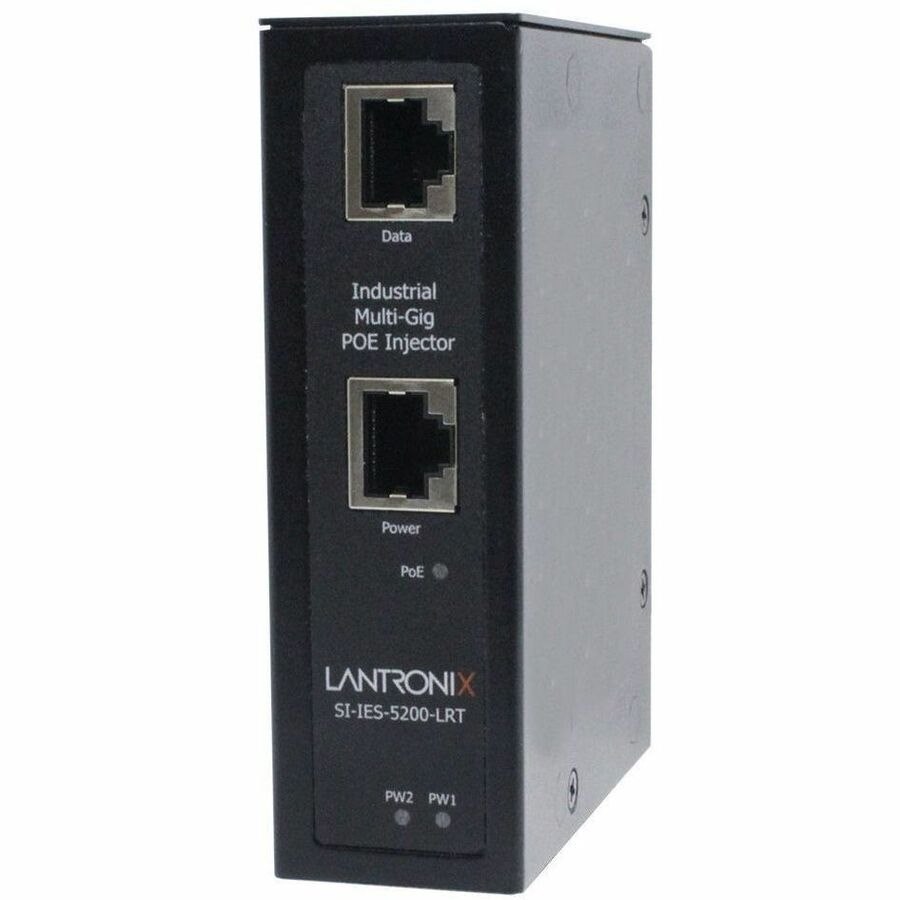

The SI-IES-5200-LRT is an unmanaged hardened multi-Gigabit PoE++ injector that adds up to 90 Watts of power on a network segment. This injector is designed specifically to meet the demand of higher bandwidth (up to 10G), higher power (up to 90W) devices such as wireless access points, multi-lens surveillance cameras, license plate readers and other IP networked devices in locations where a power source is not readily available. It provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments like manufacturing floors or curb-side traffic control cabinets. The SI-IES-5200-LRT is certified to ensure safe and reliable operation in temperatures between -40°C to +75°C.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of PoE (RJ-45) Ports
- 1
- Number of PoE+ (RJ-45) Ports
- 1
- PoE Port Type
- PD
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Ethernet Technology
- Ethernet
- Power Description
- Power Consumption
- 101.40 W
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 4.1"
- Width
- 1.3"
- Depth
- 3.2"
- Weight (Approximate)
- 6.35 oz
- Miscellaneous
- Certifications & Standards
- EN62368-1 (LVD)
- Safety UL62368-1 (MET)
- FCC
- CE/UKCA
- EN 55032/35 (EMC)
- EMI CISPR 32
- FCC Part 15B Class A
- IEC61000-4-2 (ESD): Contact 6KV, Air 8KV
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT): Power 2KV, Signal 2KV
- IEC61000-4-5 (Surge): Power 2KV, Signal 2KV
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- EN50058-2-6 (Vibration)
- EN60068-2-27 (Shock)
- EN60068-2-32 (Free Fall)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- TAA Compliant
- Yes
