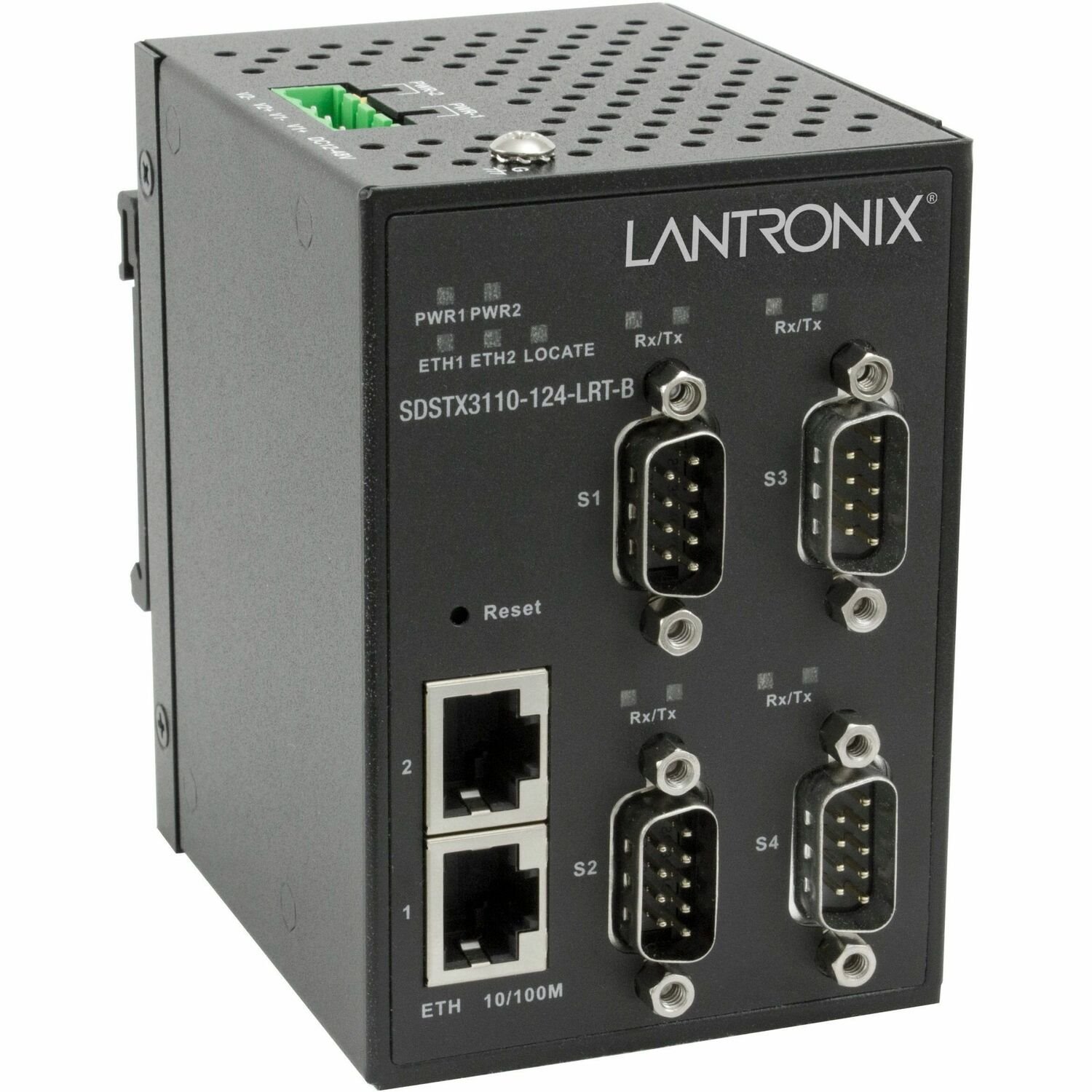

Transition Networks serial device server provides the ability to communicate serial data across an Ethernet network. The SDSTX3110-124-LRT-B contains (2) 10/100Base Fast Ethernet ports that can be configured to one or multiple redundant servers. Security of the data transmission is assured through HTTPS, SSH, and SSL data encryption.
The SDSTX3110-124-LRT-B comes with COM port redirector software enabling communication of serial data to a virtual COM port on a server, or can be used in pairs to provide serial tunneling across the Ethernet network.
The SDSTX3110-124-LRT-B is a hardened device designed to operate in the harshest environments. Enclosed in an IP30 enclosure and accepting input voltage of 12 to 48 VDC, the device is certified to operate in temperatures of -40°C to +70°C.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Packaged Quantity
- 1
- Product Type
- Device Server
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- IP Rating
- IP30
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Standard
- 10/100Base-TX
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of Serial Ports
- 4
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Power Description
- Input Voltage
- 12 V DC
- 48 V DC
- Power Consumption
- 4.32 W
- Physical Characteristics
- Height
- 3.7"
- Width
- 2.6"
- Depth
- 3.2"
- Weight (Approximate)
- 6.08 oz
