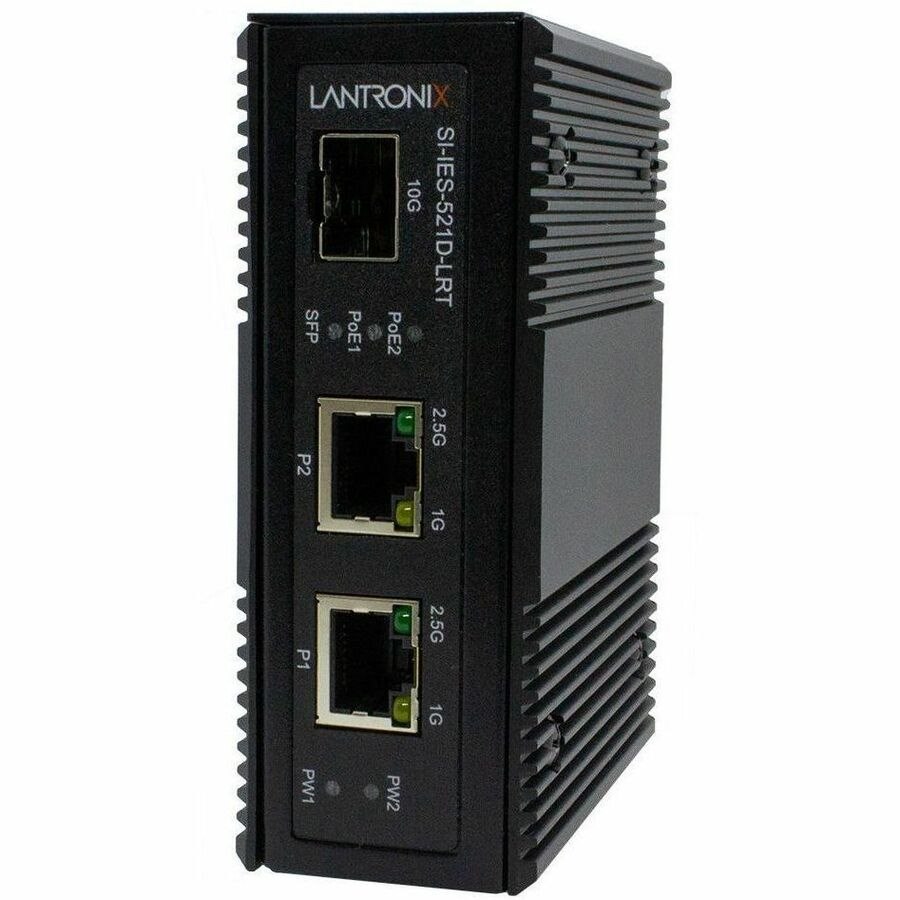

Lantronix SI-IES-5x1D-LRT Transceiver/Media Converter

  • Part: 2949606
$535.00

Availability

Out of Stock
  • General Information
    • Manufacturer
    • Lantronix, Inc
    • Manufacturer Website Address
    • http://www.lantronix.com
    • Brand Name
    • Lantronix
    • Product Series
    • SI-IES-5x1D-LRT
    • Product Type
    • Transceiver/Media Converter

The SI-IES-511D-LRT and SI-IES-521D-LRT are unmanaged hardened multi-Gigabit PoE++ injector/converters that add up to 90 Watts of power from the PoE++ port(s) onto 1 or 2 (depending on model) network segments. The SI-IES-5x1D Series are designed specifically to meet the evolving demands of higher 2.5G bandwidth and higher power (90W) devices such as wireless access points and security cameras in outdoor traffic cabinets, parking garages, or other harsh environments. The 1G/10G speed SFP+ slot provides flexibility by allowing fiber SFP uplink ports to extend the distance of security, transportation and telco networks. The SI-IES-5x1D-LRT Series PoE++ injector/converters are built for rugged environments like outdoor cabinets and certified to ensure safe and reliable operation in temperatures between -40°C to +75°C.

  • Warranty
    • Limited Warranty
    • 5 Year

  • Interfaces/Ports
    • Total Number of Ports
    • 2
    • Network (RJ-45)
    • Yes
    • Number of PoE (RJ-45) Ports
    • 1
    • PoE Port Type
    • PD
    • Number of Network (RJ-45) Ports
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Optical Fiber
  • I/O Expansions
    • Total Number of Expansion Slots
    • 1
    • Number of SFP+ Slots
    • 1
  • Network & Communication
    • Ethernet Technology
    • Ethernet
    • Network Technology
    • 10GBase-X
  • Power Description
    • Power Consumption
    • 220 W
  • Physical Characteristics
    • Form Factor
    • DIN Rail Mountable
    • Wall Mountable
    • Height
    • 4.1"
    • Width
    • 1.5"
    • Depth
    • 3.2"
    • Weight (Approximate)
    • 11.29 oz
  • Miscellaneous
    • Package Contents
      • SI-IES-5x1D-LRT Transceiver/Media Converter
      • Wall Mount Brackets
    • Application/Usage
    • Industrial
    • Certifications & Standards
      • EN62368-1 (LVD)
      • Safety UL62368-1 (MET)
      • Hazardous Loc UL 121201 C1 D2 (MET)
      • FCC
      • CE/UKCA
      • EN 55032/35 (EMC)
      • EMI CISPR 32
      • FCC Part 15B Class A
      • IEC61000-4-2 (ESD): Contact 6KV, Air 8KV
      • IEC61000-4-3 (RS)
      • IEC61000-4-4(EFT): Power 2KV, Signal 2KV
      • IEC61000-4-5 (Surge): Power 2KV, Signal 2KV
      • IEC61000-4-6 (CS)
      • IEC61000-4-8 (Magnetic Field)
      • EN50058-2-6 (Vibration)
      • EN60068-2-27 (Shock)
      • EN60068-2-32 (Free Fall)
    • TAA Compliant
    • Yes
