- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- LM
- Product Type
- Device Server
Lantronix's LM-Series console servers are the fifth generation of purpose-built network management automation devices. Easy to use, with resilient out-of-band access, onboard processing / storage and LMOS software, the LM-Series serial console servers are deployed in enterprises worldwide ranging from ultra-secure military and financial networks to downtime-intolerant networks in healthcare and energy.

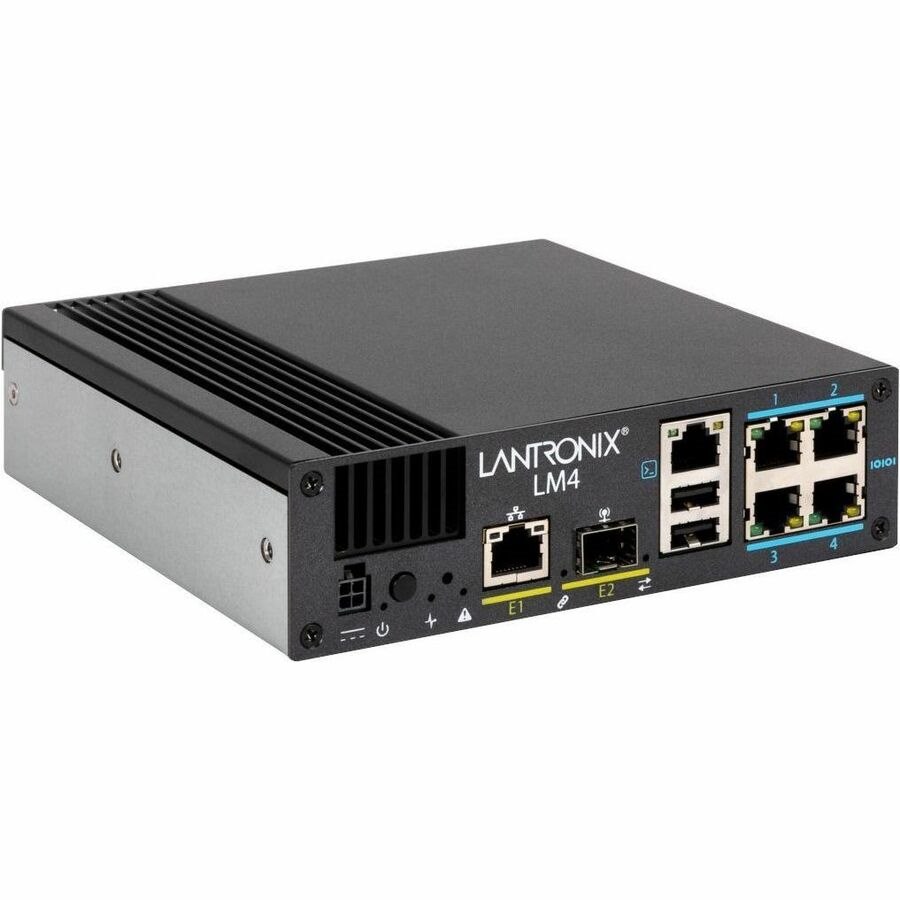

The LM4 is an advanced out-of-band solution that provides access, monitoring and control of network infrastructure that operates whether the network is up or down. With up to four ports of serial console connections for directly managing gear plus support for up to 48 virtual ports, the LM4's size is deceiving.
Running the powerful LMOS software, the LM4 brings the most advanced out-of-band management capabilities to the edge of your network with enterprise-grade automation, cybersecurity, and compliance functionality.
- Technical Information
- Device Type
- Console Server
- Connectivity Technology
- Wired
- Memory
- Standard Memory
- 15.63 GB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP
- Wireless Specifications
- Wireless LAN
- No
- ISM Band
- No
- UNII Band
- No
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- 1000Base-X
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Serial Port
- Yes
- Management Port
- Yes
- Total Number of Network Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of USB Ports
- 2
- Number of Serial Ports
- 2
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 131°F (55°C)
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 VAC to 240 VAC
- Input Current
- 1.40 A
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Compact
- Height
- 1.8"
- Width
- 6.3"
- Depth
- 6.3"
- Weight (Approximate)
- 3.13 lb
- Miscellaneous
- Package Contents
- LM4 Console Server 2-Port
- North American Power Cord
- Adapter
- Certifications & Standards
- FCC Class A Sub Part B
- UL
- FIPS 140-2
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
