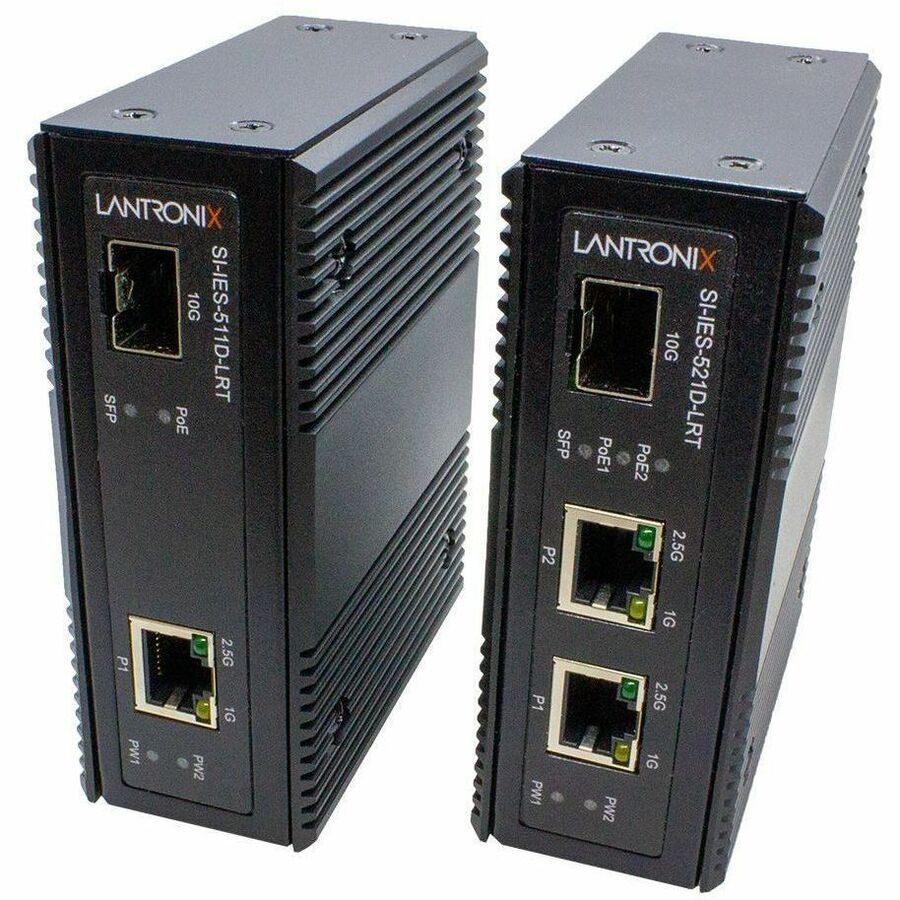

Unmanaged multi-Gig PoE++ Injector/Media Converter adds up to 90W of power on a network segments. Designed for higher 2.5G bandwidth, higher power (<90W) IP devices in locations where a power source is not readily available, 1G/10G SFP+ slot for extending distance. Great for rugged environments like factory floors or outdoor cabinets. Operating temp -40°C to +75°C.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- SI-IES-5x1D-LRT
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of PoE (RJ-45) Ports
- 1
- PoE Port Type
- PD
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Number of SFP+ Slots
- 1
- Network & Communication
- Ethernet Technology
- Ethernet
- Network Technology
- 10GBase-X
- Power Description
- Power Consumption
- 220 W
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 4.1"
- Width
- 1.5"
- Depth
- 3.2"
- Weight (Approximate)
- 11.29 oz
- Miscellaneous
- Package Contents
- Transceiver/Media Converter
- Wall Mount Brackets
- Application/Usage
- Industrial
- Certifications & Standards
- EN62368-1 (LVD)
- Safety UL62368-1 (MET)
- Hazardous Loc UL 121201 C1 D2 (MET)
- FCC
- CE/UKCA
- EN 55032/35 (EMC)
- EMI CISPR 32
- FCC Part 15B Class A
- IEC61000-4-2 (ESD): Contact 6KV, Air 8KV
- IEC61000-4-3 (RS)
- IEC61000-4-4(EFT): Power 2KV, Signal 2KV
- IEC61000-4-5 (Surge): Power 2KV, Signal 2KV
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
- EN50058-2-6 (Vibration)
- EN60068-2-27 (Shock)
- EN60068-2-32 (Free Fall)
- TAA Compliant
- Yes
