- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Line
- Yarden
- Product Type
- Speaker

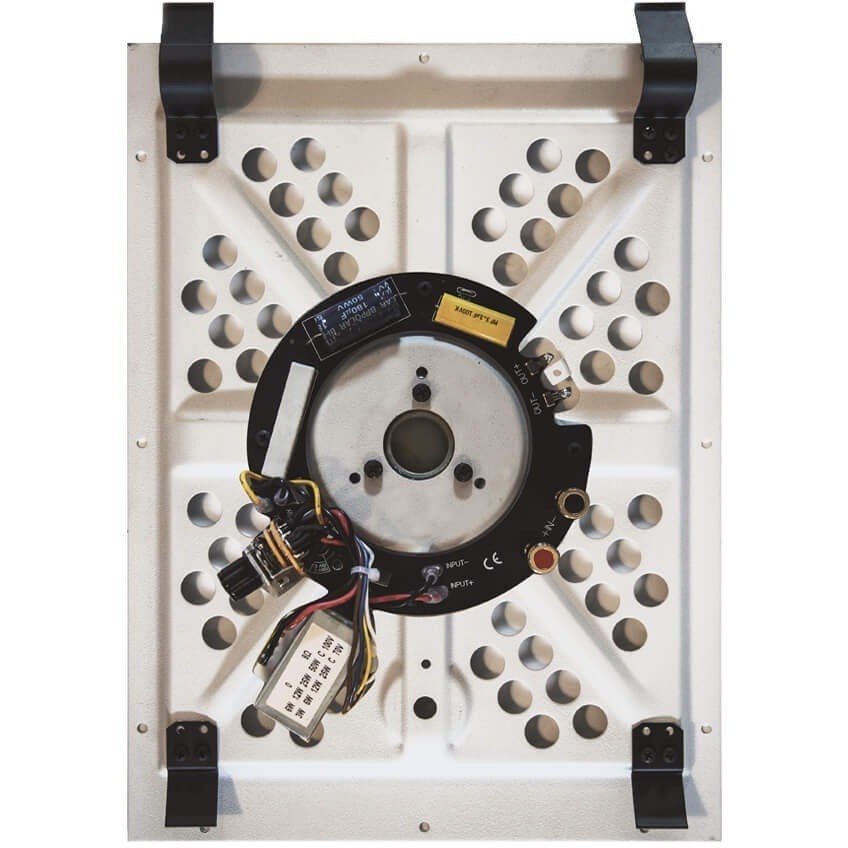

The Yarden IH-1 is an open-back speaker designed for mounting invisibly in the wall. It is designed for infinite baffle environments, high-power handling and excellent acoustic performance.
- Type - In-wall hidden speaker.
- Drive Units - Polypropylene flat membrane, 2" voice coil, double magnet neodymium motor.
- Frequency Response - 120Hz to 20kHz @±3dB.
- Transformer Taps - 8Ω/70V/100V.
- Sensitivity - 83dB, 1W @1m.
- Power Handling - 40W RMS, 90W continuous program.
- Crossover - 2nd level @120Hz, high pass.
- Mounting Brackets - Equipped with special "insert and drop" brackets for quick, easy and intuitive installation.
- Dimensions - Overall: 35cm x 26cm (13.7" x 10.2") W, H; cutout: 32.5cm x 24cm (12.7" x 9.4") W, H; mounting depth: 5.7cm (2.2").
- Weight - 1.6kg (3.5lbs) approx.
- Technical Information
- RMS Output Power
- 40 W
- PMPO Output Power
- 90 W
- Minimum Frequency Response
- 120 Hz
- Maximum Frequency Response
- 20 kHz
- Impedance
- 8 Ohm
- Sensitivity
- 83 dB
- Physical Characteristics
- Product Color
- White
- Form Factor
- In-wall
- Height
- 13.7"
- Width
- 10.2"
- Weight (Approximate)
- 3.53 lb
