- General Information
- Manufacturer
- ID TECH
- Manufacturer Website Address
- http://www.id-tech.net
- Brand Name
- ID TECH
- Product Line
- Omni
- Product Type
- Magnetic Stripe Reader

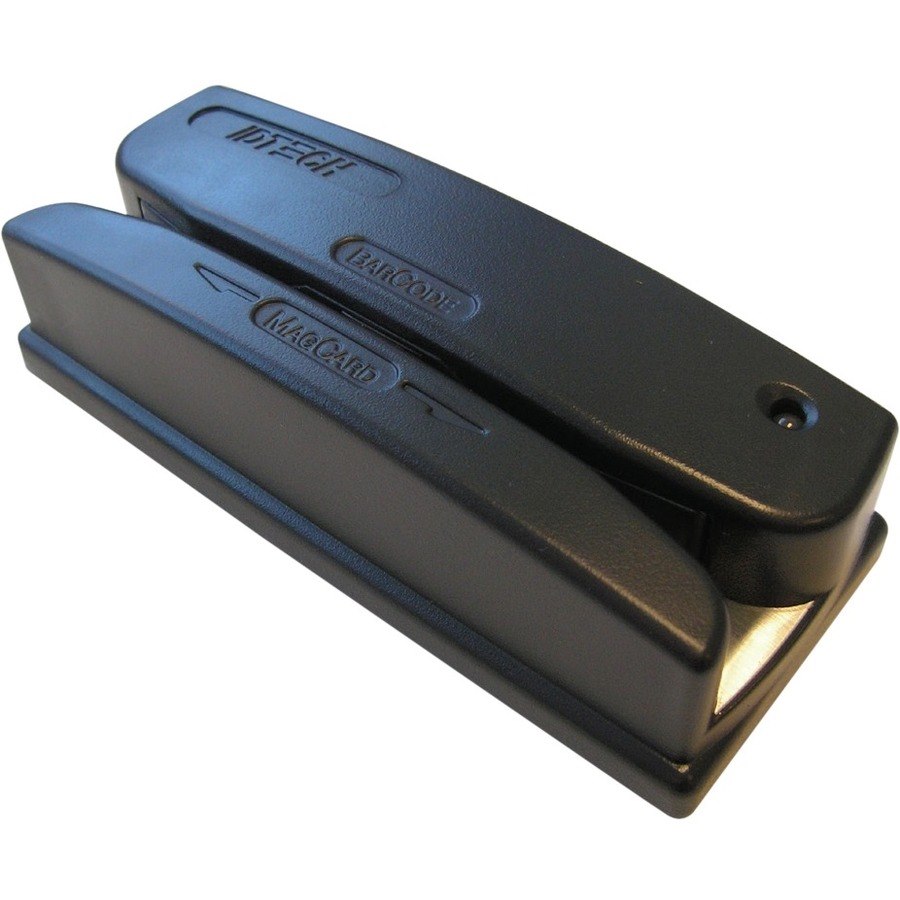

The Omni 3227 Magnetic Stripe Reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni 3227 Magnetic Stripe Reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
- Technical Information
- Number of Read Heads
- 2
- Magnetic Stripe Track Configuration
- Dual Track
- Magnetic Stripe Track Number
- Track 1
- Track 2
- Minimum Swipe Speed
- 3 in/s
- Maximum Swipe Speed
- 60 in/s
- Number of Swipes (Head Life)
- 1000000
- Interfaces/Ports
- USB
- Yes
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Height
- 1.4"
- Width
- 2"
- Length
- 5"
- Weight (Approximate)
- 1.40 lb
- Miscellaneous
- Additional Information
- Reads most bar codes symbologies and/or MagStripe Data
- Signifies successful reads with a beeper and LED indicator
- Die-cast metal plate allows flexible mounting options
- Threaded inserts for easy and flexible mounting
