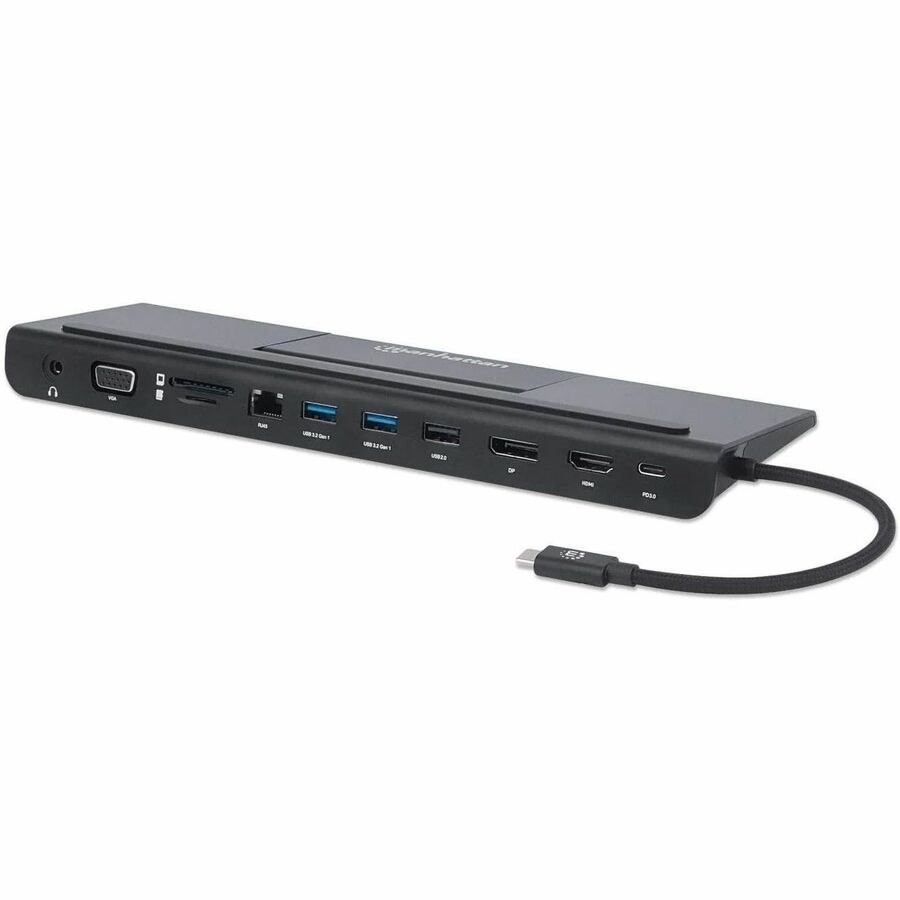

The USB-C Docking Station with MST from Manhattan – drive three monitors at once with 11 connections to your device
Increase your productivity with your desktop, notebook or tablet using this highly versatile docking station from Manhattan. Its Multi-Stream Transport (MST) technology helps you to multitask on three monitors at the same time since it includes an HDMI, a DisplayPort and a VGA port.
Connections to all your peripherals
With three USB ports for mice, keyboards and flash drives, a 3.5 mm stereo port for a headset and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides the wired network connection that’s missing in most modern Ultrabooks and Macbooks.
Up to 100 W charging power with USB-C Power Delivery (PD)
The included USB-C PD port lets you charge your notebook with up to 100 W while simultaneously charging your other mobile devices, such as smartphones or tablets through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.
Take your phone to the big screen
Connect any Android 9 and later smartphone that supports video output over USB-C and enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation – all from your phone.
A multiport adapter that's made to go where you go
Sturdy aluminum housing makes this multiport adapter the perfect travel companion. Despite its massive connectivity options, it’s still compact enough to fit right in your backpack or computer bag with your main device. Thanks to its fold-out kickstand, you can place your laptop directly on the docking station.
- General Information
- Manufacturer
- IC INTRACOM
- Manufacturer Website Address
- http://www.icintracom.com
- Brand Name
- Manhattan
- Package Type
- Retail
- Product Type
- Docking Station
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Smartphone
- Tablet PC
- Flash Drive
- Keyboard
- Notebook
- Monitor
- Desktop PC
- Memory Card Reader
- Yes
- Memory Card Supported
- SD
- microSD
- SDHC
- SDXC
- MultiMediaCard (MMC)
- High Speed MultiMediaCard (HS-MMC)
- Reduced Size MultiMediaCard (MMC)
- Features
- Plug and Play
- Foldable Stand
- Power Delivery Pass-through
- Number of Displays Supported
- 3
- Screen Mode Supported
- SVGA
- XGA
- 4K UHD
- Full HD
- WUXGA
- HD
- Supported Resolutions
- 640 x 480
- 800 x 600
- 1024 x 768
- 3840 x 2160
- 1920 x 1080
- 1920 x 1200
- 1280 x 720
- Maximum Data Transfer Rate
- 640 MB/s
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB Type C
- Total Number of USB Ports
- 5
- Number of USB 2.0 Ports
- 1
- USB Type-A
- Yes
- Number of USB 3.2 Gen 1 Type-A Ports
- 2
- Number of USB Type-A Ports
- 3
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x 24-pin USB-C, male, 1 x USB-C 24-pin input, Power Delivery, female
- Number of USB Type-C Ports
- 2
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- VGA
- Yes
- Number of VGA Outputs
- 1
- DisplayPort
- Yes
- Number of DisplayPorts
- 1
- DisplayPort Version
- 1.2
- Headphone/Microphone Combo Port
- Yes
- HDMI
- Yes
- Number of HDMI Ports
- 1
- HDMI Version
- 1.4
- USB Power Delivery
- 100W
- Software
- Operating System Supported
- Windows 7
- Windows 8.1
- Linux
- Mac OS X Lion v.10.7.1
- Android 9.0
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Gray
- Height
- 10.24"
- Width
- 3.46"
- Depth
- 0.91"
- Weight (Approximate)
- 11.99 oz
- Miscellaneous
- Compatibility
Compatible with all USB-C DP-Alt-Mode compatible desktops, laptops and tablets, including Apple MacBook, Cromebook, Pixel and more
- Brand Compatibility
- Apple
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
