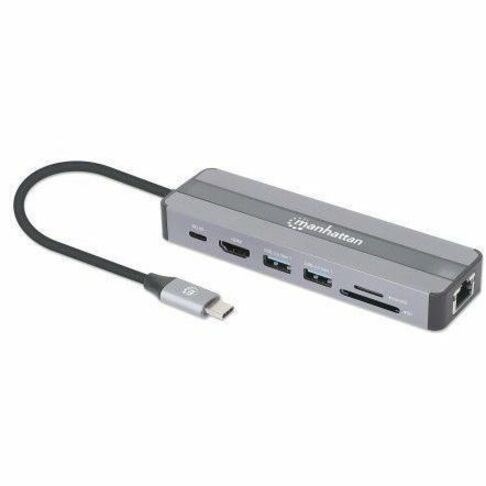

USB-C Docking Station with PD Charging - connect HDMI monitor, network, peripherals and (micro)SD cards to your device
Increase your productivity with this highly versatile multiport adapter from Manhattan that combines a 4K HDMI connection, a USB hub, a wired gigabit network link, device-power capability and card reader into one. This USB-C dock establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (laptops, PCs, MacBooks, Chromebooks, computers, tablets, etc.) and existing HDMI displays (monitors, TVs and projectors) for 4K30Hz Ultra High Definition (UHD) images in either mirror- or extended-display mode.
Connections to all your peripheralsWith two USB-A ports (5 Gbps transfer speeds) for mice, keyboards or flash drives, and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides 10/100/1000 Mbps connectivity to the wired network connection that’s missing in most modern Ultrabooks™ and MacBooks®.
Up to 87 W charging power with USB-C Power Delivery (PD)The included USB-C PD port lets you charge your notebook with power up to 87 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.
Take your phone to the big screenConnect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.
A multiport adapter that's made to go where you goSturdy aluminum housing makes this multiport adapter the perfect travel companion. With its many connectivity options, it has a footprint of only 126 x 36 x 16 mm (4.96 x 1.42 x 0.63 in.), so it's small enough to fit in an outer notebook bag pocket.
- General Information
- Manufacturer
- IC INTRACOM
- Manufacturer Website Address
- http://www.icintracom.com
- Brand Name
- Manhattan
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Flash Drive
- Smartphone
- Monitor
- TV
- Projector
- Keyboard
- Notebook
- Desktop PC
- Mouse
- Memory Card Reader
- Yes
- Memory Card Supported
- SD
- microSD
- Screen Mode Supported
- 4K
- Supported Resolutions
- 3840 x 2160
- Maximum Data Transfer Rate
- 640 MB/s
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB Type C
- Total Number of USB Ports
- 4
- USB Type-A
- Yes
- Number of USB 3.2 Gen 1 Type-A Ports
- 2
- Number of USB Type-A Ports
- 2
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB-C 24-pin, male, 1 x USB-C 24-pin, Power Delivery, female
- Number of USB Type-C Ports
- 2
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- HDMI
- Yes
- Number of HDMI Ports
- 1
- HDMI Version
- 1.4
- USB Power Delivery
- 87W
- Software
- Operating System Supported
- Windows 7
- Windows 8.1
- Windows 10
- Windows 11
- ChromeOS
- macOS
- Android 9.0
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Silver
- Black
- Form Factor
- Portable
- Height
- 0.63"
- Width
- 1.42"
- Length
- 5"
- Weight (Approximate)
- 2.50 oz
- Miscellaneous
- Package Contents
- USB-C 7-in-1 Docking Station with Power Delivery
- Instructions
- Compatibility
- Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including MacBook, Chromebook, Pixel and more
- Brand Compatibility
- Apple
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
