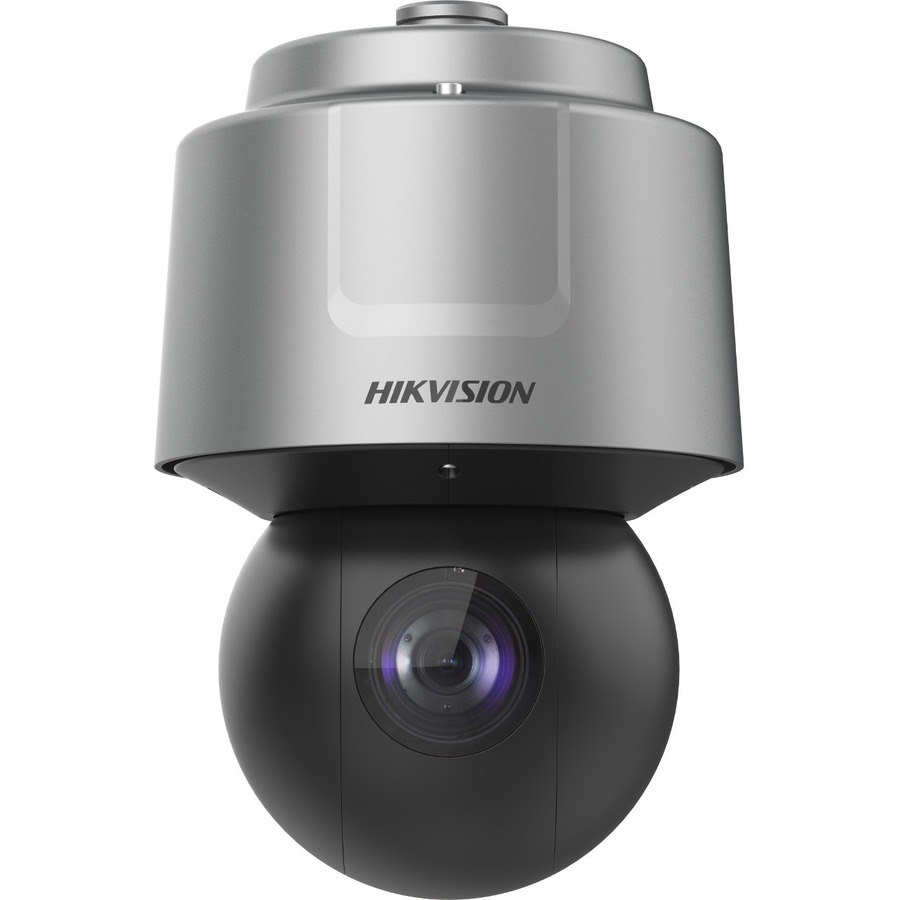

Hikvision DS-2DF6A836XS-AEL(T2) 8 MP 36 × Network Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 36 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
- 1/1.8" Progressive Scan CMOS
- Up to 3840 × 2160 resolution
- Min. Illumination: Color: 0.005 Lux @(F1.2, AGC ON), B/W: 0.0005 Lux @(F1.2, AGC ON)
- 36 × optical zoom, 16 × digital zoom
- 120 dB WDR, 3D DNR, EIS, HLC
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Support Rapid focus
- IK10, IP67
- Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- Person arming: supports real-time modeling and comparison, arms and tracks predefined persons, and uploads the longitude and latitude information of the target during tracking
- Vehicle arming: supports vehicle detection and license plate recognition, arms and tracks predefined vehicles, and uploads the longitude and latitude information of the target during tracking
- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- Ultra
- Product Type
- Network Camera
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- Horizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele)
- Effective Camera Resolution
- 8 Megapixel
- Video
- Video Formats
- H.265
- H.265+
- H.264
- MJPEG
- H.264+
- Maximum Video Resolution
- 3840 x 2160
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 6 mm
- Maximum Focal Length
- 216 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.2
- Optical Zoom
- 36x
- Exposure
- Shortest Shutter Speed
- 1/30000 Second
- Longest Shutter Speed
- 1/1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 24 V AC
- Physical Characteristics
- Mount Type
- Pole Mount
- Wall Mount
- Form Factor
- Dome
- Durability
- Vandal Proof
- Diameter
- 9.1"
- Weight (Approximate)
- 13.23 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- 3D Digital Noise Reduction
- Highlight Compensation (HLC)
- Day/Night
- Back Light Compensation (BLC)
- Privacy Masking
- Defog
- PTZ
- Face Tracking
- Region of Interest
- Audio Compression
- Motion Detection
- Tampering Alarm
- Cross Line Detection
- HTTPS Encryption
- Surge Protection
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP67
