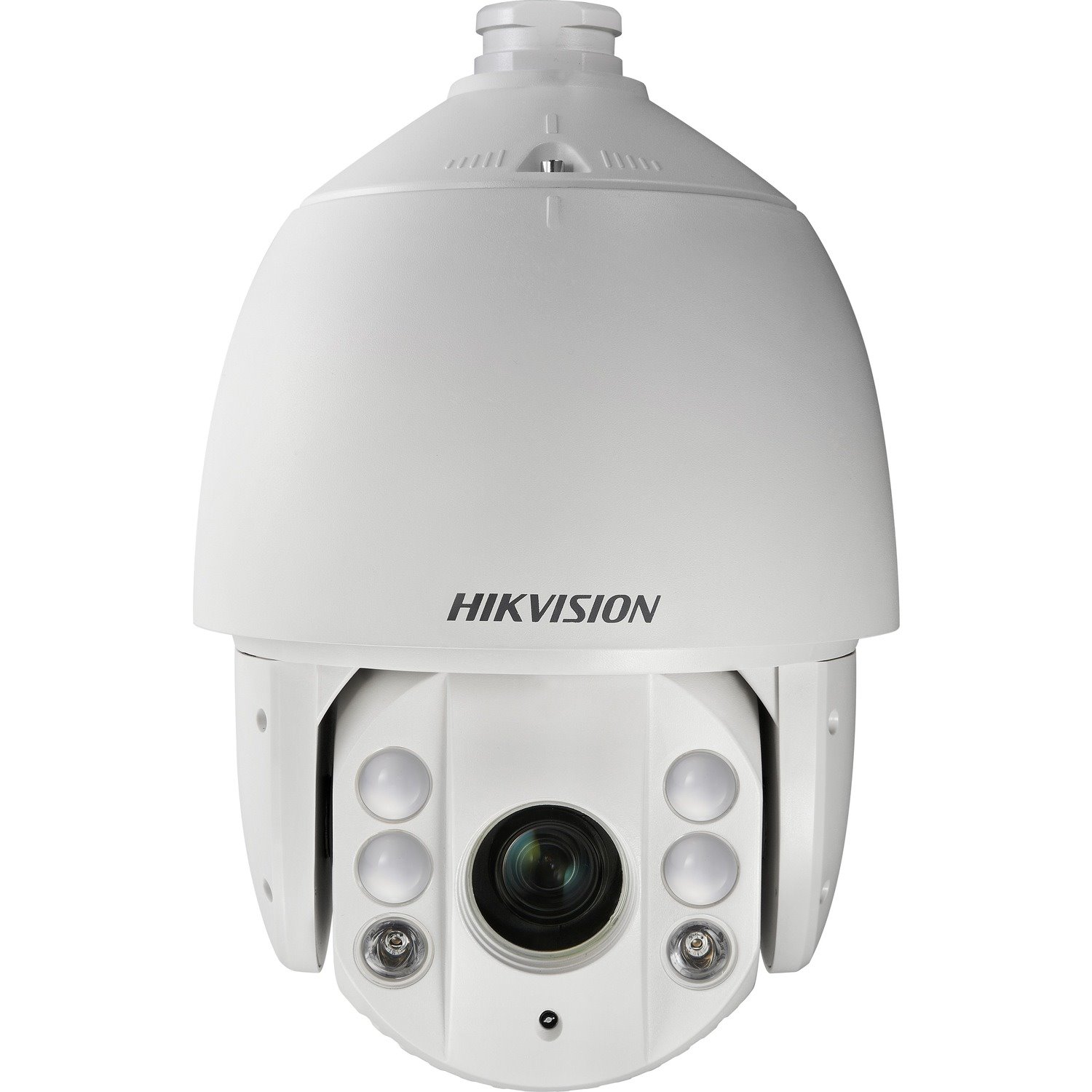

Hikvision DS-2AE7232TI-A TurboHD PTZ Speed Dome Cameras produce images with a resolution of up to 1920 x 1080 pixels. The embedded 1/2.8" progressive scan CMOS chip supports true WDR, and the 32x optical zoom allows for greater detail to be collected over more expansive areas.
- Minimum Illumination: Color: 0.005 Lux @ (f/1.2, AGC on) B/W: 0.001 Lux @ (f/1.2, AGC on)
- Tilt Range: From -15° to 90° (auto-flip), 360° endless
- Aperture Range: f/1.2 to f/4.4
- 24 VAC, maximum 40 W (54 W with IR
- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- Turbo HD
- Product Type
- Surveillance Camera
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 492.13 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Monochrome
- Color
- Field of View
- Horizontal field of view: 54.2° to 1.97° (wide to tele)
- Effective Camera Resolution
- 2 Megapixel
- Video
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Analog Video Signal Format
- TVI
- AHD
- CVBS
- CVI
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 4.80 mm
- Maximum Focal Length
- 153 mm
- Lens Included
- Yes
- Minimum Aperture
- f/4.4
- Maximum Aperture
- f/1.2
- Optical Zoom
- 32x
- Exposure
- Shortest Shutter Speed
- 1/10000 Second
- Longest Shutter Speed
- 1/1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Power Description
- Input Voltage
- 24 V AC
- Power Source Type
- AC
- Physical Characteristics
- Mount Type
- Wall Mount
- Corner Mount
- Pole Mount
- Power Box Mount
- Ceiling Mount
- Pendant Mount
- Roof Mount
- Parapet Mount
- Form Factor
- Dome
- Durability
- Water Resistant
- Dust Resistant
- Height
- 13.9"
- Diameter
- 8.7"
- Weight (Approximate)
- 9.92 lb
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 149°F (65°C)
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- Surge Protection
- Automatic White Balance
- Auto Gain Control
- Auto Tracking
- Day/Night
- Privacy Masking
- Back Light Compensation (BLC)
- Built-in HLC
- Indoor/Outdoor
- Outdoor
- Ingress Protection Rating
- IP67
- Country of Origin
- China
- TAA Compliant
- Yes
