- General Information
- Manufacturer
- Fluke Networks
- Manufacturer Website Address
- http://www.flukenetworks.com
- Brand Name
- Fluke
- Product Line
- LinkIQ
- Packaged Quantity
- 1
- Product Type
- Cable/Network Tester

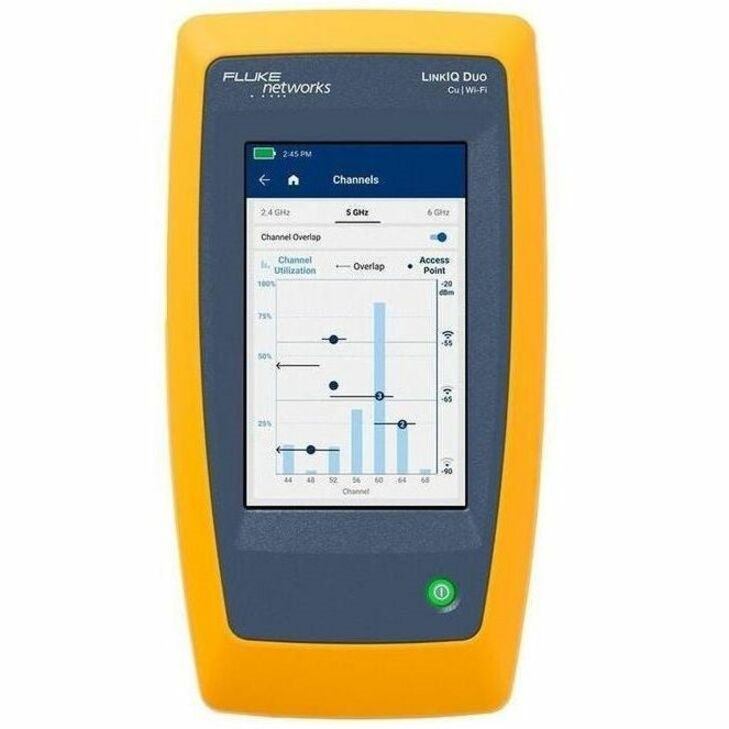

The LinkIQ™ Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-based measurements and a wire map of the cable under test. It also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration - eliminating the need for another device. The LinkIQ Duo model adds Wi-Fi analysis to Wi-Fi 6E (where approved), including networks, channels, and access points plus warning of common configuration issues. The IE models allow identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables supporting EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols. Additional features include Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare™ PC.
- Technical Information
- Device Function
- Cable Testing
- Wireless Connectivity Testing
- Network Testing
- Network Troubleshoot
- PoE Testing
- Wiremap
- Cable Fault Testing
- Connectivity Testing
- Twisted Pair Cable Testing
- Maximum Length Measurement
- 1000.7 ft
- Interfaces/Ports
- USB
- Yes
- Network (RJ-45)
- Yes
- Wireless Specifications
- Wireless LAN
- Yes
- Network Band
- Tri Band
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Network Standard
- 10GBase-T
- 5GBase-T
- 2.5GBase-T
- 1000Base-T
- 1000Base-TX
- 10Base-T
- Ethernet Technology
- 10 Gigabit Ethernet
- Battery Information
- Battery Size Supported
- 3.6V
- Battery Rechargeable
- Yes
- Battery Life
- 8 Hour
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Height
- 8.50" (215.90 mm)
- Width
- 4.50" (114.30 mm)
- Depth
- 1.87" (47.50 mm)
- Weight (Approximate)
- 1 lb (453.59 g)
- Miscellaneous
- Package Contents
- LinkIQ Cable+Wi-Fi+Network Tester
- Quick Reference Guide
- USB-C to USB-A Cable
- Charging Cable
- Cat6A Patch Cord
- RJ45/11 Modular Adapter
- Hanging Strap with Remote ID Holder
- Carrying Case
- Application/Usage
- Network
- Office
