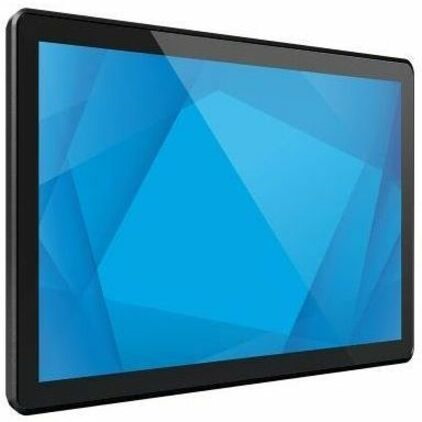

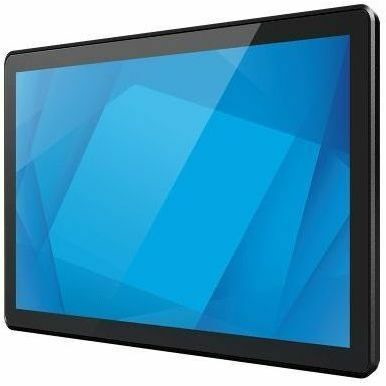

Elo's 1564L 15-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1564L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro® PCAP display.
The 15-inch 1564L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
Enable power, video and touch with a single USB-C cable. | Durable, energy efficient touchscreen.
- UL62368 & IK08 compliance
- Chemically-strengthened glass
- Ready for24/7 use
- Wide operaing voltage range (12V-24V)
- Energy Star 8.0 certified
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.

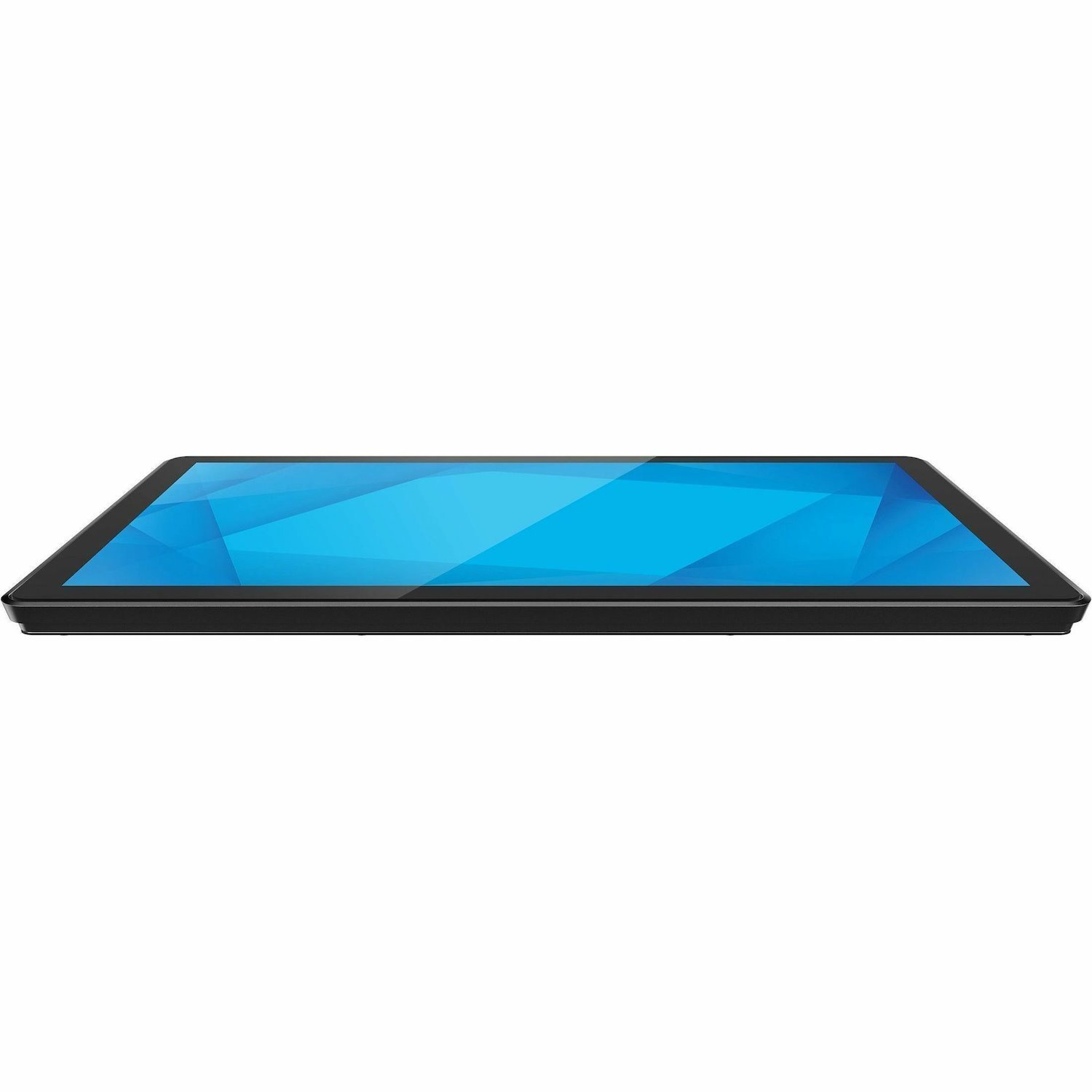

Elo's 15-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
Computing power that scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.
- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Type
- Open-frame LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 16"
- Viewable Screen Size
- 15.6"
- Screen Mode
- Full HD
- Panel Technology
- Thin Film Transistor (TFT)
- Response Time
- 25 ms
- Response Time Details
- 25ms Typical
- Aspect Ratio
- 16:9
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Mount Type
- Flush Mount
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Landscape/Portrait Viewable
- Low Blue Light
- Operation Hours
- 24 Hours/7 Days
- Ingress Protection (IP) Rating
- IPX1
- Impact Protection (IK) Rating
- IK08
- Active Display Area (H x V)
- 13.50" x 7.60"
- On Screen Display (OSD) Controls
- Brightness
- Contrast
- Sharpness
- Color Temperature
- Video
- Maximum Resolution
- 1920 x 1080
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 450 Nit
- Touchscreen Information
- Touchscreen Type
- TouchPro Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 10

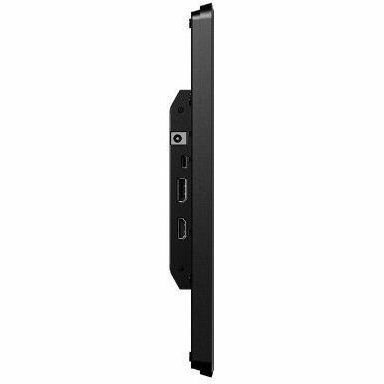

- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- DisplayPort
- Yes
- USB Type-C
- Yes
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 104°F (40°C)
- Power Description
- Frequency
- 50 Hz
- 60 Hz
- Voltage Current
- 3 A
- Physical Characteristics

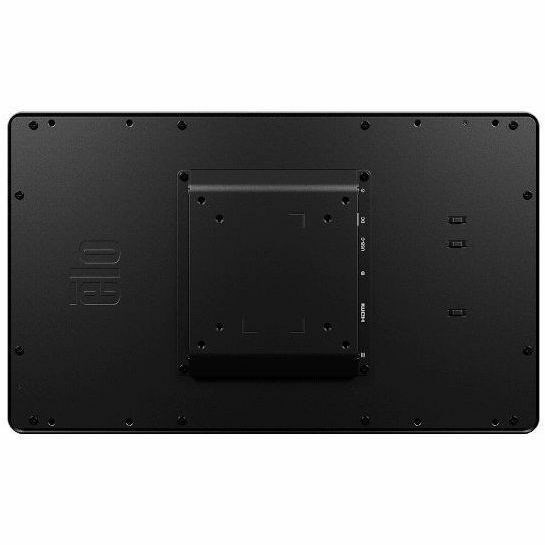

- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Color Family
- Black
- Product Color
- Black
- Height
- 8.8"
- Width
- 14.8"
- Depth
- 1.2"
- Weight (Approximate)
- 4.91 lb
- Miscellaneous
- Energy Star
- Yes
- Application/Usage
- Automation
- Gaming
- Commercial
- Kiosk System
