- General Information
- Manufacturer
- Digital Watchdog
- Manufacturer Website Address
- http://www.digital-watchdog.com
- Brand Name
- Digital Watchdog
- Product Line
- Universal HD over Coax
- Product Type
- Surveillance Camera
Summary

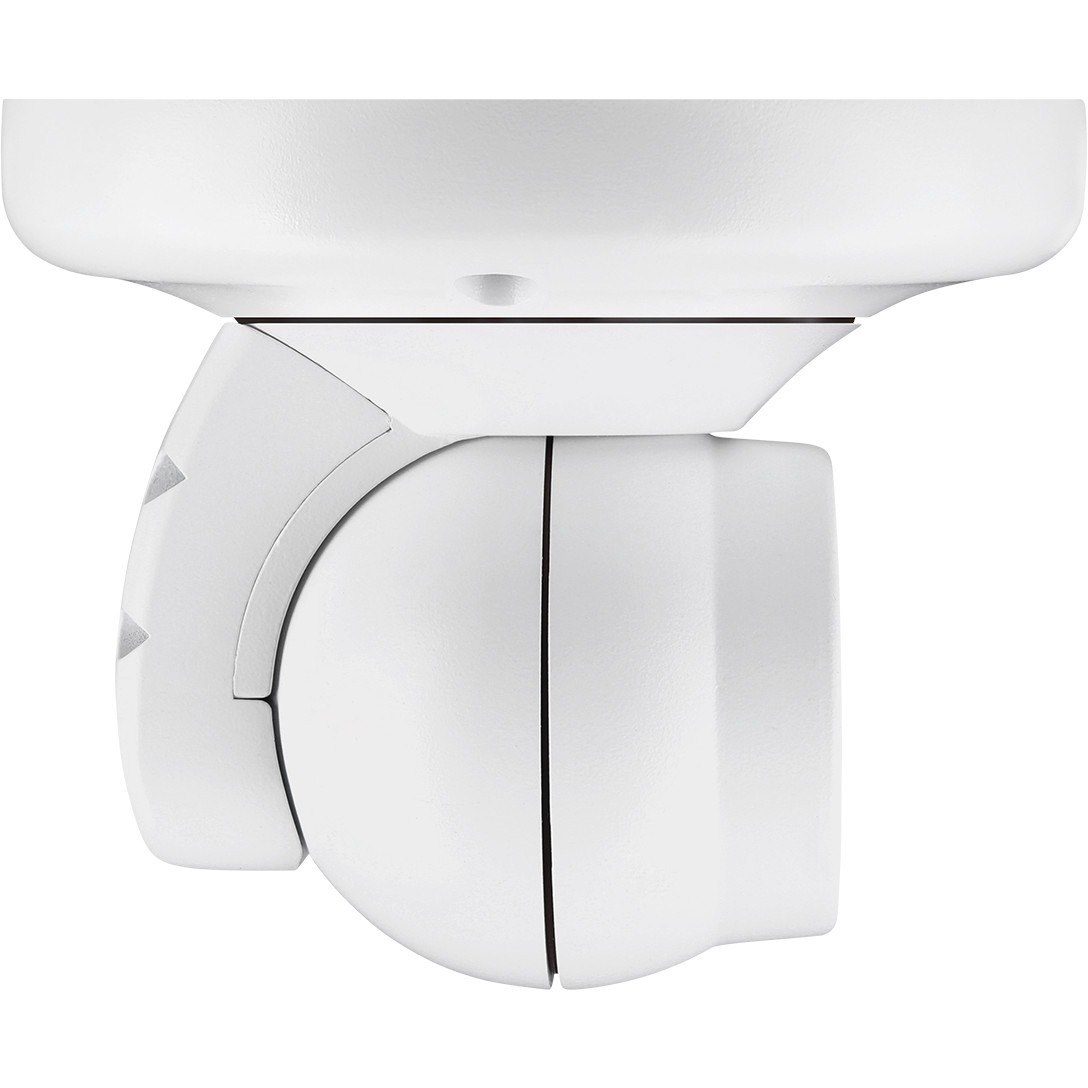

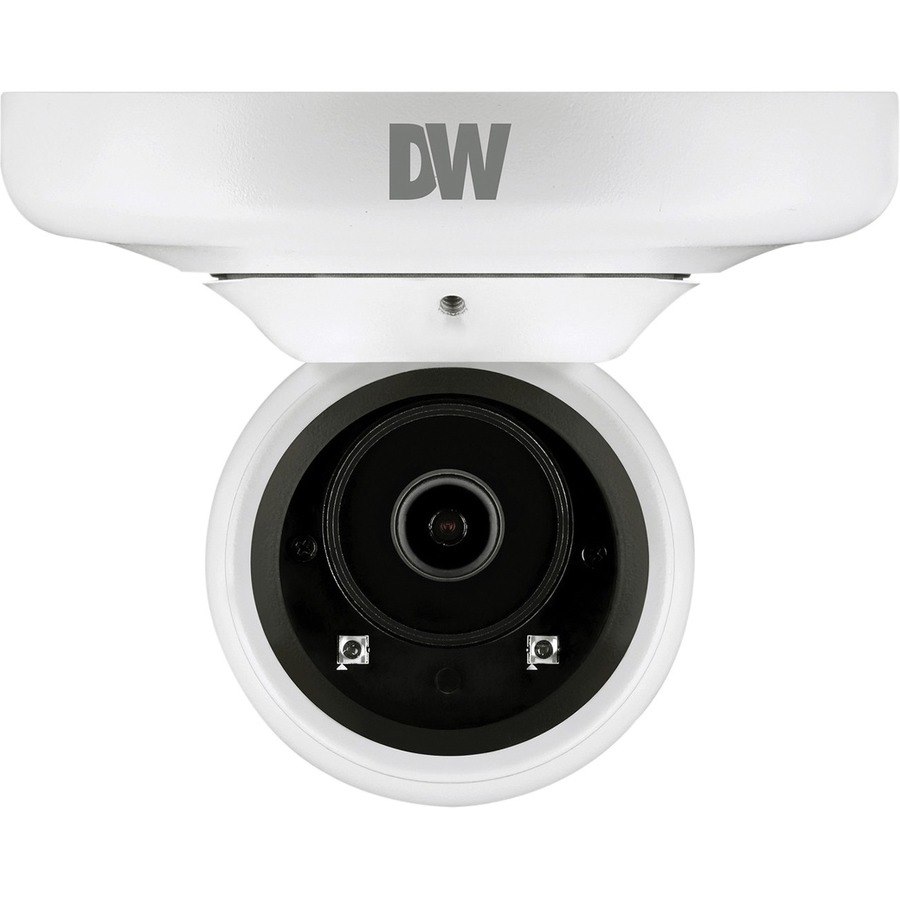

Featuring Star-Light Plus™ color in near-total darkness, 4K Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal support. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections, and can be controlled via the same coax cable using UTC. All Star-Light Plus™ 4K cameras are engineered to work with our VMAX® A1 4K™ DVRs using your existing coax infrastructure for a costeffective, high resolution surveillance solution.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 2.8mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 70' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- IP67 dust-tight and water-proof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 70 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- 106.5°
- Video
- Maximum Video Resolution
- 3864 x 2176
- Maximum Frame Rate
- 30 fps
- Analog Video Signal Format
- HD-TVI
- HDCVI
- CVBS
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Exposure
- Shortest Shutter Speed
- 1/30000 Second
- Longest Shutter Speed
- 1/30 Second
- Network & Communication
- Connectivity Technology
- Wired
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Mount Type
- Ceiling Mount
- Bracket Mount
- Wall Mount
- Junction Box Mount
- Form Factor
- Ball
- Durability
- Weather Resistant
- Vandal Resistant
- Impact Resistant
- Dust Proof
- Water Proof
- Weight (Approximate)
- 1.16 lb
- Environmental Conditions
- Minimum Operating Temperature
- -4°F (-20°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- Wide Dynamic Range
- Built-in OSD Function
- 3D Digital Noise Reduction
- Day/Night
- Defog
- Built-in Joystick
- Auto Gain Control
- Back Light Compensation (BLC)
- Automatic White Balance
- Motion Detection
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP67
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
