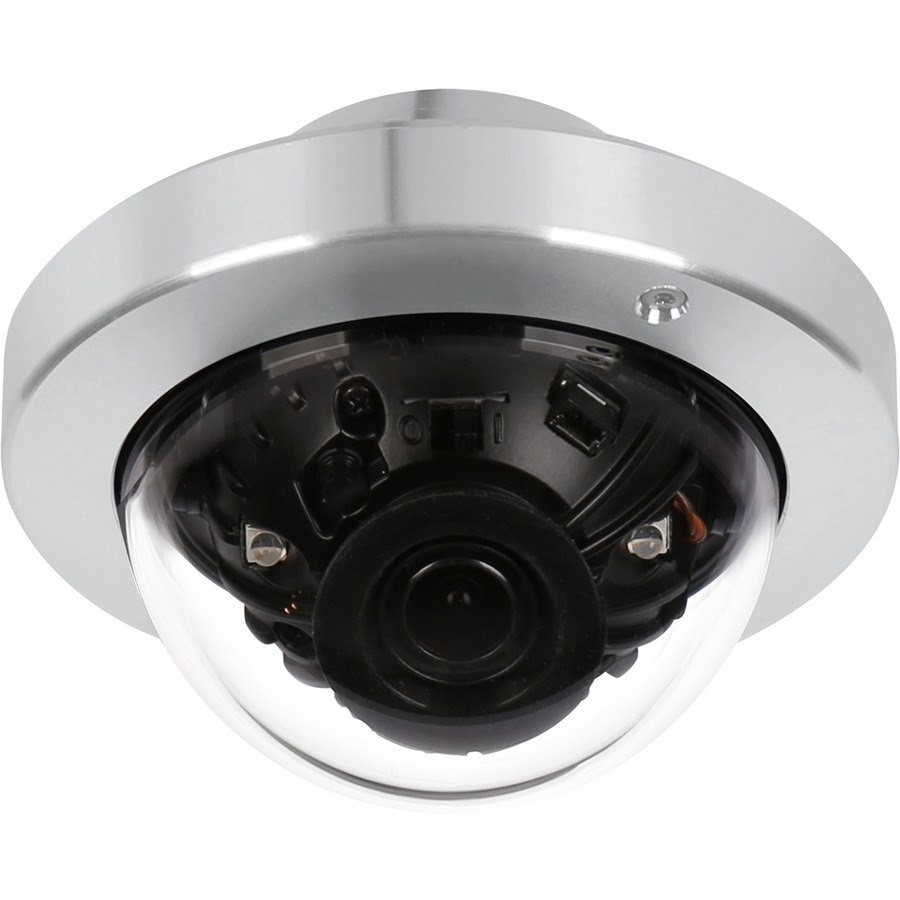

Featuring Star-Light Plus™ color in darkness, 5MP Star-Light Plus™ Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals, and all legacy analog signal. The compact micro dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW® Universal HD over Coax® cameras are engineered to work with our VMAX® A1 Plus™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
- General Information
- Manufacturer
- Digital Watchdog
- Manufacturer Website Address
- http://www.digital-watchdog.com
- Brand Name
- Digital Watchdog
- Product Line
- Star-Light Plus
- Product Type
- Surveillance Camera
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 50 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Monochrome
- Color
- Effective Camera Resolution
- 5 Megapixel
- Video
- Maximum Video Resolution
- 2592 x 1944
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 4 mm
- Network & Communication
- Connectivity Technology
- Wired
- Physical Characteristics
- Mount Type
- Surface Mount
- Form Factor
- Micro Dome
- Durability
- Vandal Resistant
- Weather Resistant
- Length
- 2.3"
- Diameter
- 3.1"
- Weight (Approximate)
- 8.96 oz
- Miscellaneous
- Features
- Auto Gain Control
- Automatic White Balance
- Back Light Compensation (BLC)
- Digital Noise Reduction
- Wide Dynamic Range
- Privacy Masking
- Package Contents
- 5MP Universal HD Over Coax Micro Dome Camera

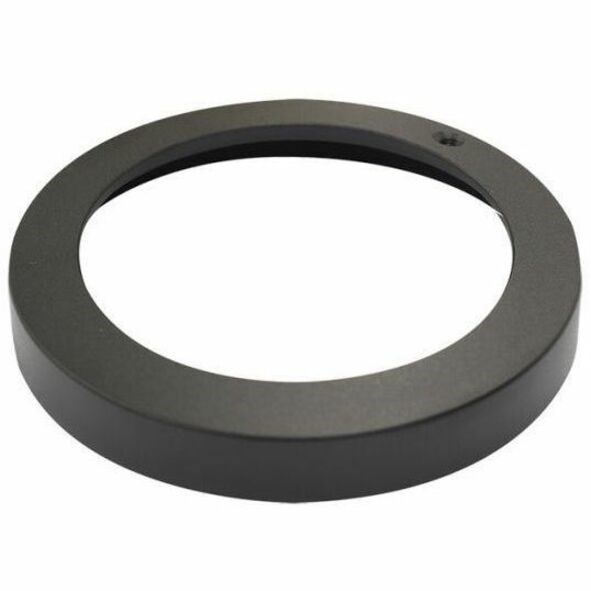

- Black Trim Ring (DWC-MCBLK)
- White Trim Ring (DWC-MCWHT)
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
