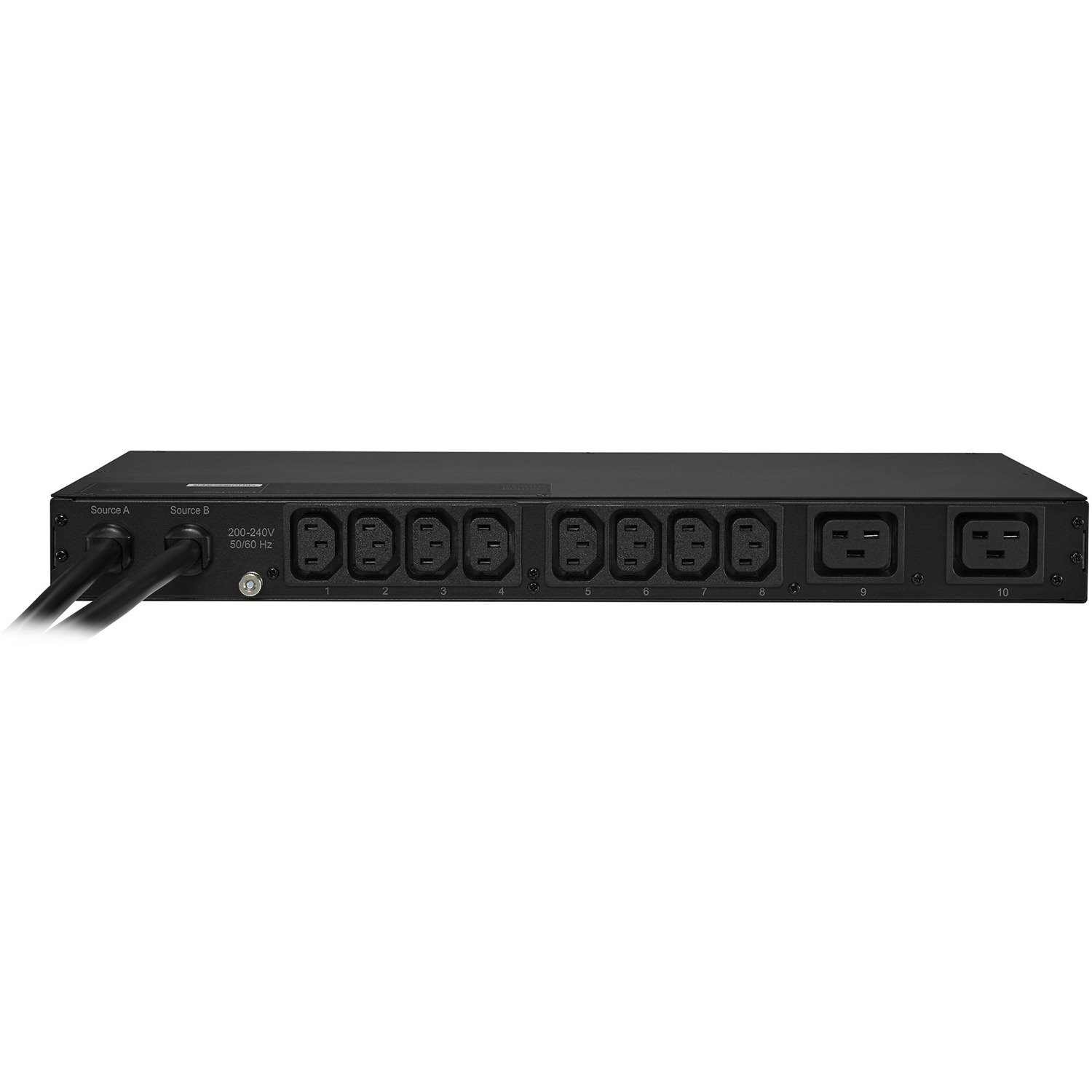

The CyberPower PDU20MHVT10AT, a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

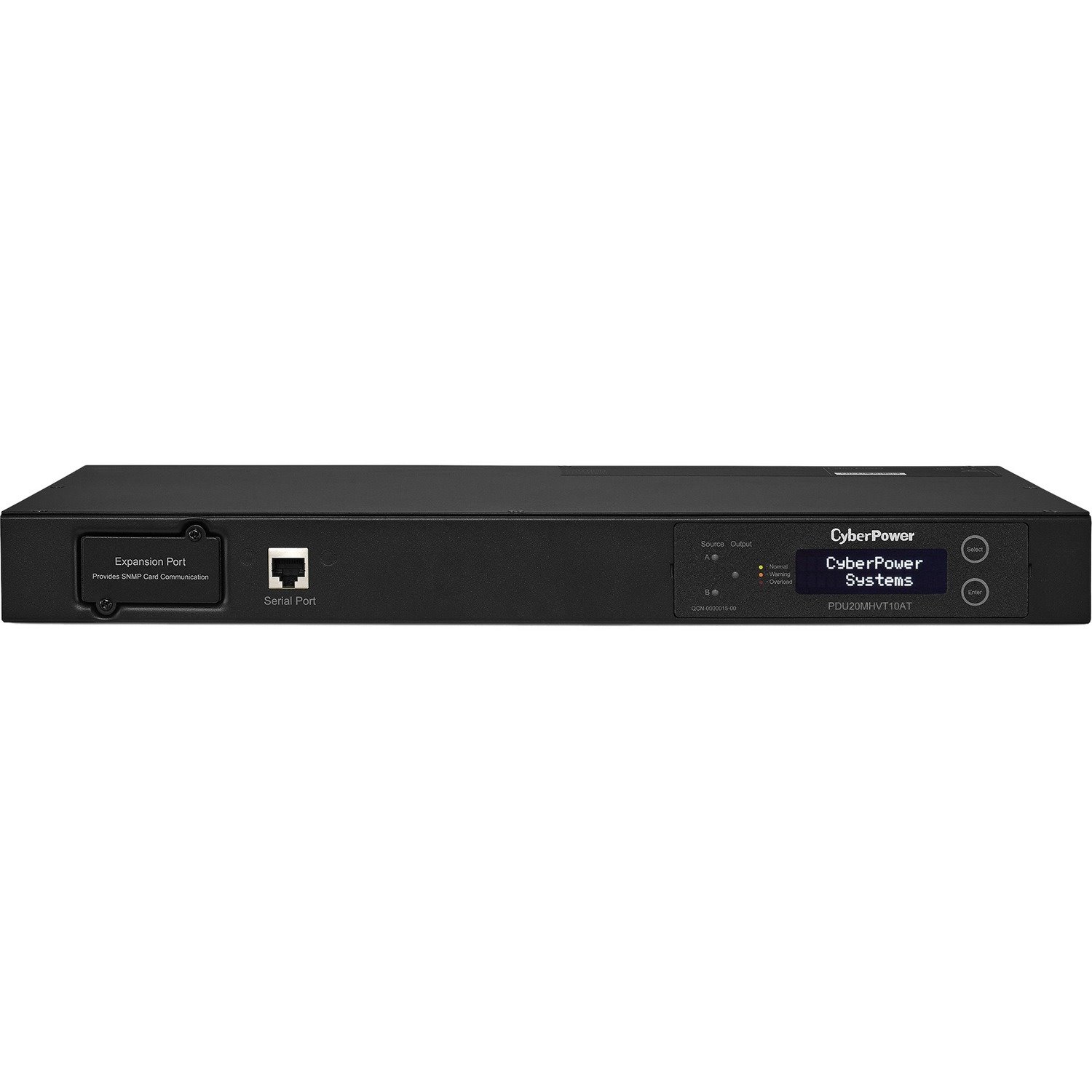

The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.
The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Metered ATS PDU
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA L6-20P
- Plug/Connector Detail
- 2 x NEMA L6-20P
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 8 x IEC 60320 C13
- 2 x IEC 60320 C19
- Protection Type
- Under Voltage Protection
- Over Voltage
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 230 V AC
- Input Current
- 20 A
- Management
- Management
- HTTP
- TCP/IP
- UDP
- DHCP
- SNMP
- SNMPv3
- IPv4
- IPv6
- NTP
- SMTP
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Number of Cord/Cable
- 2
- Cord Length
- 10 ft
- Height
- 1.8"
- Width
- 17.1"
- Depth
- 9.3"
- Weight (Approximate)
- 11.46 lb
- Miscellaneous
- Package Contents
- PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20
- Mounting Brackets (1 Set)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Compatibility
- Data Centers
- Servers
- Network Devices
- Telecom Equipment
- PR5000LCDRTXL5U
- PR6000LCDRTXL5U
- OL6000RT3U
- OL6000RT3UTF
- OL8000RT3UTF
- OL10000RT3UTF
- Certifications & Standards
- UL60950-1 Certified by ETL (USA)
- CSA C22.2(Canada)
- FCC Class A
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
