Buy Cisco ASR-920-12SZ-IM-CC Router

Cisco ASR-920-12SZ-IM-CC Router

Part: 2955142

$10,594.00

Availability

Out of Stock

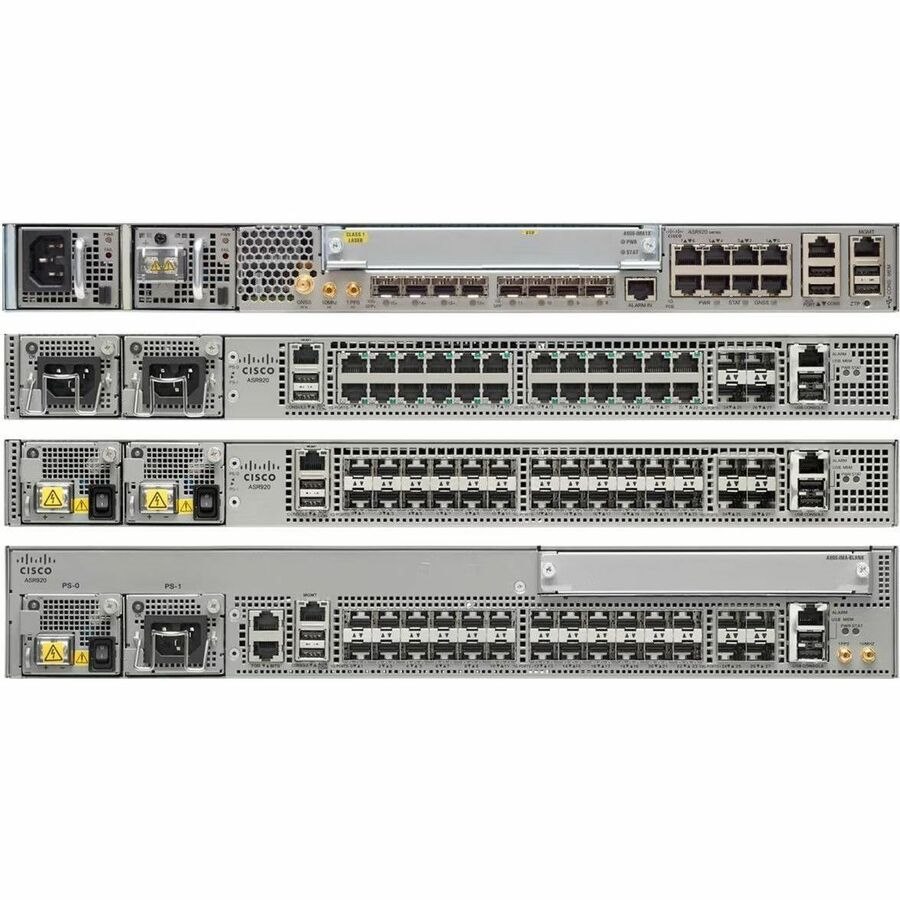

The Cisco® ASR 920 Series Aggregation Services Router is a full-featured converged access platform designed for the cost-effective delivery of wireline and wireless services. These temperature-hardened, high-throughput, small-form-factor, low-powerconsumption routers are optimized for mobile backhaul and business applications. ASR 920 routers provide a comprehensive and scalable feature set, supporting both Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. They also allow service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer.

ASR 920 series router offers key Carrier Ethernet features that simplify network operation. You can use them for premium services with enhanced Service-Level Agreements (SLAs). And an optional serviceactivation model supports incremental growth and makes these routers flexible and cost-effective.

General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- ASR 920
- Product Type
- Router

Warranty
- Limited Warranty
- 90 Day
- Limited Warranty URL
- https://connectthedots.cisco.com/connectdots/serviceWarrantyFinderRequest?fl=sf#.

Technical Information
- High Availability Supported
- Yes

Interfaces/Ports
- Total Number of Ports
- 16

Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet

Power Description
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 150 W
- Power Source
- AC/DC

Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 11.3"
- Weight (Approximate)
- 9.25 lb

Miscellaneous
- Certifications & Standards
- - UL 60950-1, 2005
  - CAN/CSA C22.2 No. 60950-1: 2005
  - IEC 60950-1, 2005
  - EN 60950-1, 2005
  - AS/NZS 60950.1:2005
  - FCC CFR47 Part 15 Class A
  - EN55022, class A
  - CISPR22, class A
  - ICES-003, class A
  - EN 300 386, class A
  - VCCI, class A
  - KN22, class A
  - EN61000-3-2 to EN61000-3-3
  - EN 300 386
  - EN 61000-6-1
  - EN 50082-1
  - CISPR24
  - EN 55024
  - KN 24
  - EN 50121-4
  - EN/KN 61000-4-2 to EN/KN 61000-4-6
  - EN/KN 61000-4-8
  - EN/KN 61000-4-11
  - IEC-61850-3 (2002) (ASR-920-12SZ-IM)
  - IEEE1613 (2009) (ASR-920-12SZ-IM)
  - GR-63-CORE
  - GR-1089-CORE
  - SR-3580 NEBS Level 4
  - ETS/EN 300 119 Part 4
  - ETS/EN 300 019 - Storage: Class 1.2, Transportation: Class 2.3, InUse/Operational: Class 3.2
  - ETS/EN 300 753
  - ANSI T1.101
  - GR-1244-CORE
  - GR-253-CORE
  - ITU-T G.703 clause 5
  - ITU-T G.703 clause 9
  - ITU-T G.781
  https://www.cisco.com/c/en/us/products/collateral/routers/asr-920-series-aggregation-services-router/datasheet-c78-733397.pdf
