- General Information
- Manufacturer
- Amer Networks, Inc
- Manufacturer Website Address
- http://www.amermounts.com
- Brand Name
- Amer
- Product Series
- SS3GR5000
- Product Type
- Layer 3 Switch

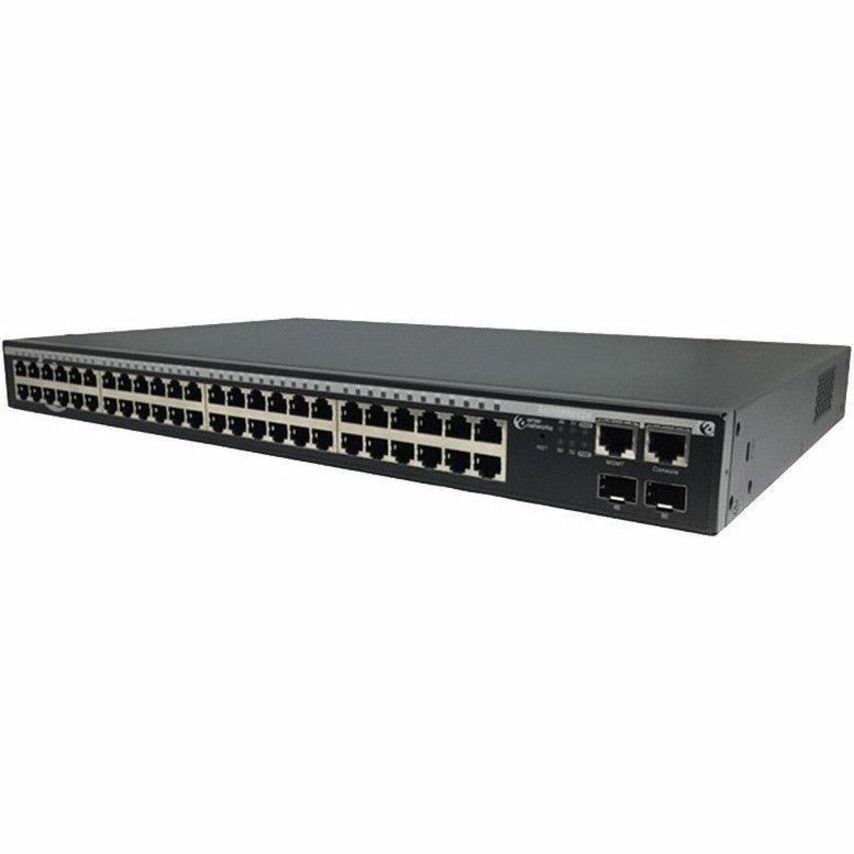

SS3GR5052X is a member of the Amer SS3GR5000 Series of Layer 3 intelligent. LAN switches desigened for carrier, MAN networks and multi-campus LAN networks. It supports comprehensive QoS,enhanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, N:1 VLAN Translation etc), Ethernet Ring Protection Protocol (G.8032), classified bandwidth control, intelligent security control, OAM (Operations, Administration and Maintenance), manageability functions and Triple-Play services which fulfill the network requirements demanded by carrier network, MAN access and multi-campus LAN networks. SS3GR5052X switch offers ''green'' features like IEEE 802.3az (Energy Efficient Ethernet), Smart Fan feature, which can dramatically lower power consumption and save significant cost for users. Equipped with the full GE ports and 4 SFP/SFP+ uplink ports, the series integrates advanced management and security functions to provide performance and scalability.
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1x
- IEEE 802.3ah
- IEEE 802.1ag
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 740 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 37 W
- Physical Characteristics
- Height
- 1.73" (44 mm)
- Width
- 17.44" (443 mm)
- Depth
- 11.02" (280 mm)
- Weight (Approximate)
- 10.36 lb (4700 g)
- Miscellaneous
- Application/Usage
- Campus
- Network
- IP Phone
- Wireless Access Point
- Security Camera
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
