- General Information
- Manufacturer
- Amer Networks, Inc
- Manufacturer Website Address
- http://www.amermounts.com
- Brand Name
- Amer
- Product Series
- SS3GR5000
- Product Type
- Layer 3 Switch

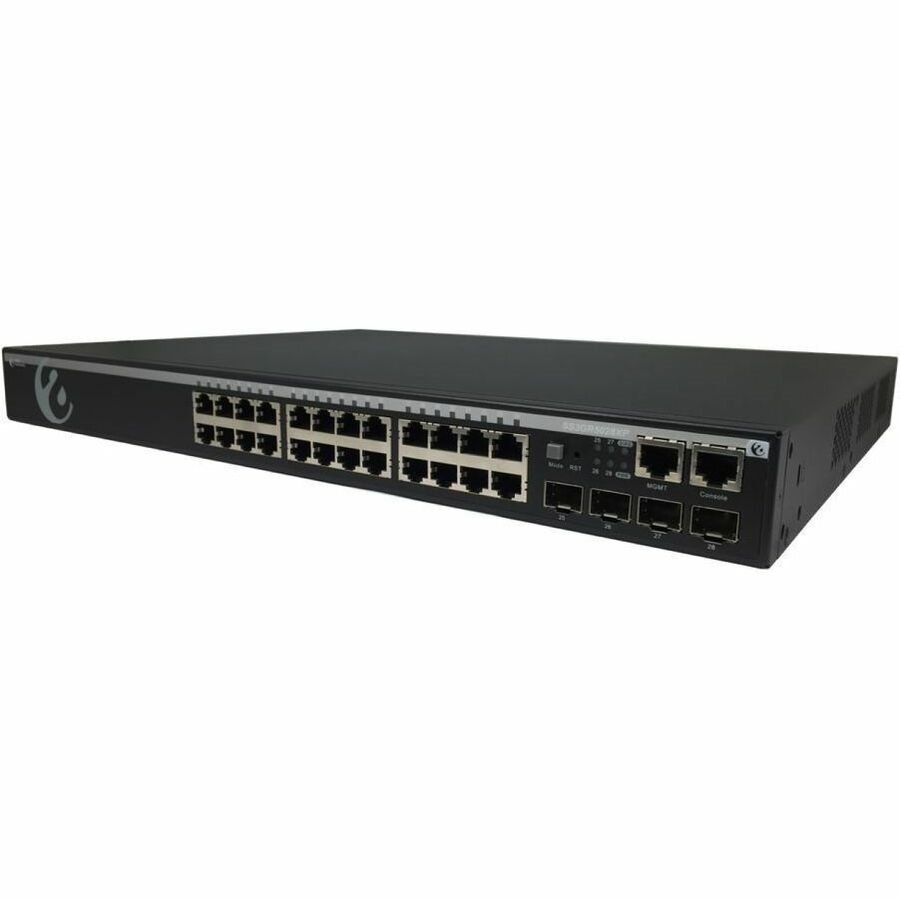

SS3GR5028XP is a member of the Amer SS3GR5000 Series of Layer 3 intelligent. LAN switches desigened for carrier, MAN networks and multi-campus LAN networks. It supports comprehensive QoS,enhanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, N:1 VLAN Translation etc), Ethernet Ring Protection Protocol (G.8032), classified bandwidth control, intelligent security control, OAM (Operations, Administration and Maintenance), manageability functions and Triple-Play services which fulfill the network requirements demanded by carrier network, MAN access and multi-campus LAN networks. SS3GR5028XP switch offers ''green'' features like IEEE 802.3az (Energy Efficient Ethernet), Smart Fan feature, which can dramatically lower power consumption and save significant cost for users. Equipped with the full GE ports and 2 SFP/SFP+ uplink ports, the series integrates advanced management and security functions to provide performance and scalability.
Main Features
1. Advanced Function & Performance
- High adaptability VLAN Features
- SS3GR5028XP supports 802.1Q and port based VLAN as well as MAC based VLAN, Voice VLAN and Protocol VLAN.
- Abundant QinQ technology including Normal QinQ, Selective QinQ, and Flexible QinQ, gives users maximum freedom to configure QinQ policy.
- N:1 VLAN Translation feature can translate multiple VLAN tags in the frames from access ports into one specified VLAN Tag.It provides a strong technical support for QoS policy convergence.
- Abundant Multicast Features
- SS3GR5028XP also supports MVR (Multicast VLAN Register), selectively allows traffic to cross between different VLANs for bandwidth and security reasons. With MVR Trunk function, which could associate multicast VLAN to trunk port, SS3GR5028XP combines the VLAN data into the same link, saving resources for users.
- SS3GR5028XP could prevent multicast traffic from flooding via IGMP Snooping, while multicast traffic is only forwarded to ports associated to multicast devices.
- Warranty
- Limited Warranty
- 10 Year
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet Network Port
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3at
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3az
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3ah
- IEEE 802.1ag
- IEEE 802.1D
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Power Consumption
- 23 W
- Physical Characteristics
- Height
- 1.73" (44 mm)
- Width
- 17.36" (441 mm)
- Depth
- 9.06" (230 mm)
- Weight (Approximate)
- 5.34 lb (2420 g)
- Miscellaneous
- Application/Usage
- Campus
- IP Camera
- IP Phone
- Wireless Access Point
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
