- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Proprietary Power Supply

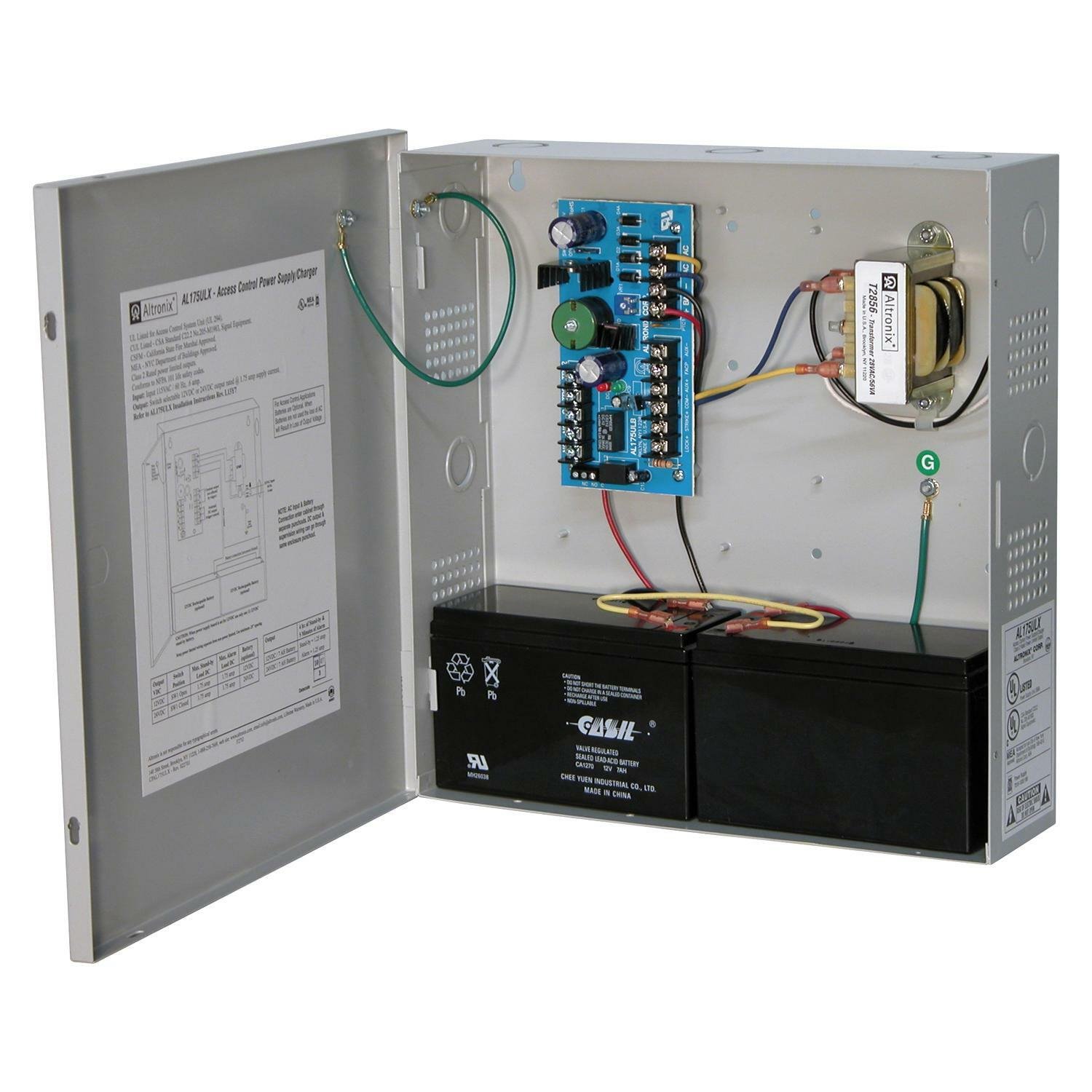

The AL175ULX is a power limited power supply/charger that will convert 115VAC / 60Hz input, into two individually PTC protected 12VDC or 24VDC outputs, (see specifications). It is intended for use in applications requiring UL Listing for Access Control System Units (UL 294) and applications requiring an interface with Fire Alarm Control Panels.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Short Circuit
- Thermal Overload
- Power Description
- Number of +12V Rails
- 2
- Input Voltage Type
- AC
- Input Voltage
- 120 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 1.75 A
- 24 V DC @ 1.75 A
- Input Current
- 600 mA @ 110V
- Output Current
- 1.75 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Enclosure
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 8.90 lb
- Miscellaneous
- Compatibility
- Access Control System
- Signal Equipment
- Fire Alarm Control Panel
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
