- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Proprietary Power Supply

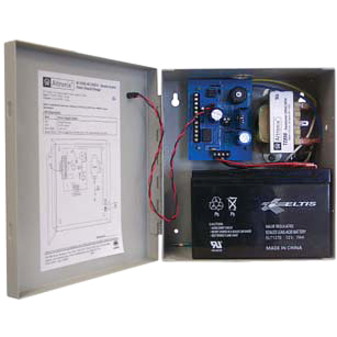

AL125UL, AL125ULX, AL125ULP are Power Limited Power Supply/Chargers that will convert 115VAC 50/60Hz input, into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Short Circuit
- Thermal Overload
- Power Description
- Input Voltage Type
- AC
- Input Voltage
- 120 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 1 A
- 24 V DC @ 1 A
- Input Current
- 600 mA @ 110V
- Output Current
- 1 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Enclosure
- Height
- 8.5"
- Width
- 7.5"
- Depth
- 3.5"
- Weight (Approximate)
- 5.10 lb
- Miscellaneous
- Compatibility
- Fire Alarm Control Panels
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
