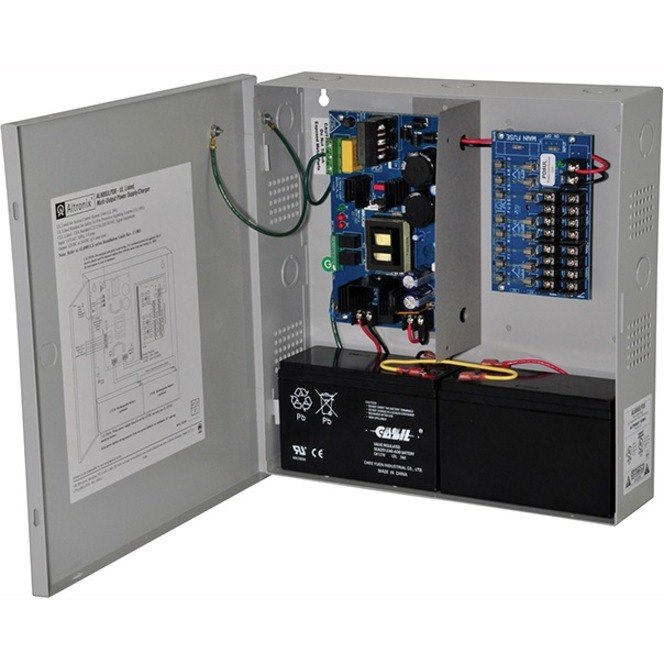

Model AL600ULPD8 power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via eight (8) fuse protected non power limited outputs. Model AL600ULPD8CB is a PTC protected version of this unit.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Short Circuit
- Thermal Overload
- Surge
- Power Description
- Number of +12V Rails
- 8
- Input Voltage Type
- AC
- Input Voltage
- 120 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 6 A
- 24 V DC @ 6 A
- Input Current
- 1.9 A @ 110V
- Output Current
- 6 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Enclosure
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 7.80 lb
- Miscellaneous
- Compatibility
- Access Control Systems
- Fire Protective Signaling Systems
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
