- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply

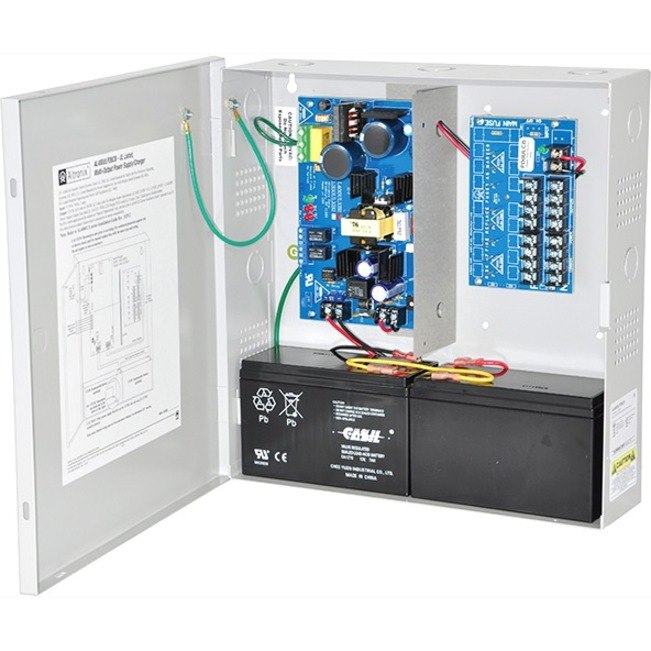

Model AL400ULPD8CB power supply/charger converts a 115VAC 60Hz input, to a 4 amp of continuous supply current @ 12VDC or 3 amp of continuous supply current @ 24VDC distributed via eight (8) PTC protected Class 2 Ratedpower limited outputs. Model AL400ULPD8 is a fuse protected version of this unit.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Short Circuit
- Thermal Overload
- Power Description
- Number of +12V Rails
- 8
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 4 A
- 24 V DC @ 3 A
- Input Current
- 1.45 A @ 110V
- Output Current
- 4 A
- 3 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 8.40 lb
- Miscellaneous
- Compatibility
- Access Control Systems
- Burglar Alarm Systems
- Nurse Call Equipments
- Fire Protective Signaling Systems
- Signal Equipments
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
