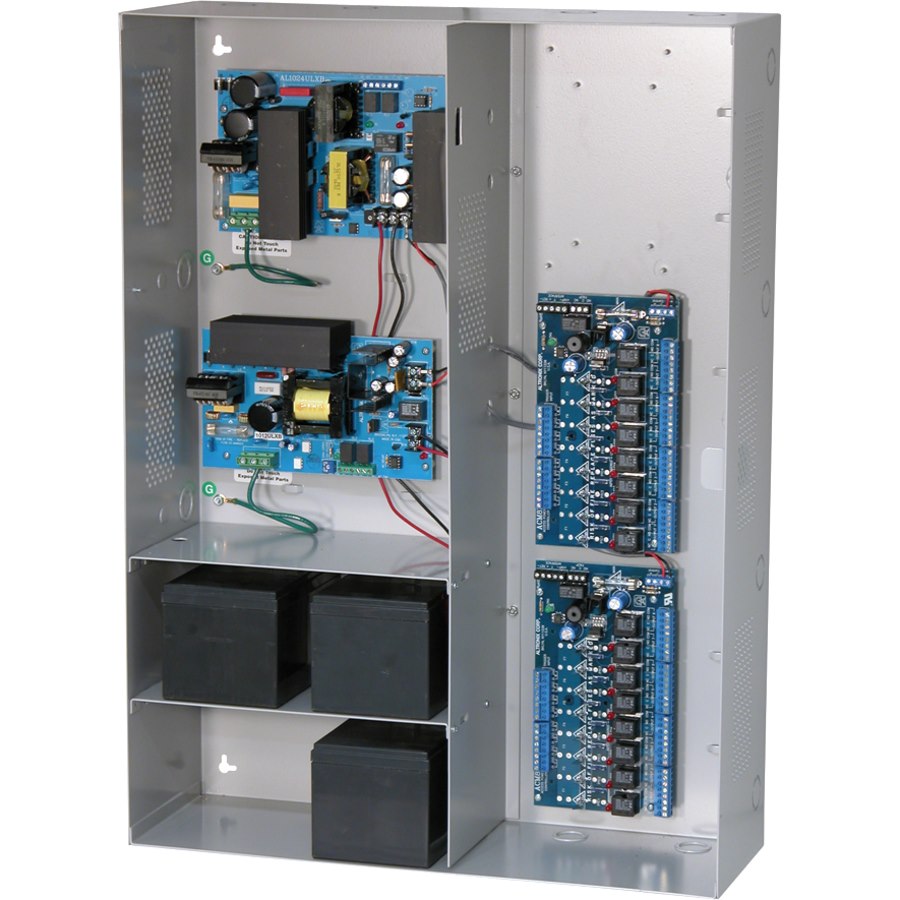

Maximal75D distributes and switches power to access control systems and accessories. Unit converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and 24VDC Class 2 Rated PTC protected power-limited outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Maximal
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 9.5 A
- 24 V DC @ 9.7 A
- Output Current
- 9.50 A
- 9.70 A
- Physical Characteristics
- Form Factor
- Enclosure
- Height
- 26"
- Width
- 19"
- Depth
- 6.3"
- Weight (Approximate)
- 33 lb
- Miscellaneous
- Package Contents
- 1 x Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor
- 1 x Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
- 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- 2 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
- Compatibility
Access Control Devices:
- Mag Lock
- Electric Strike
- Magnetic Door Holder
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
