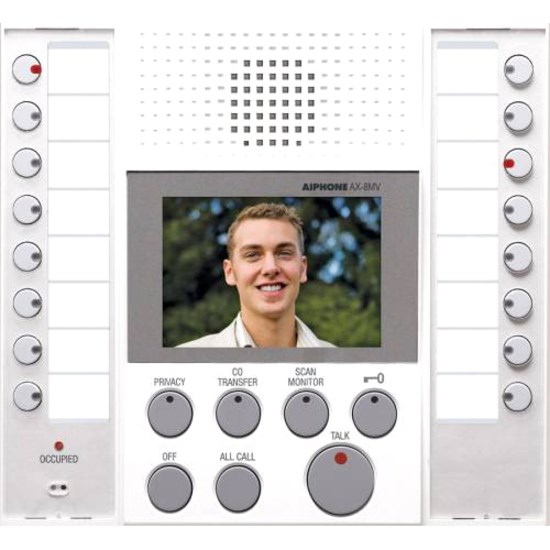

The AX-8MV Master Station is the centerpiece of the AX Integrated Audio & Video Security system.
Each AX-8MV master station can initiate and answer calls from up to 7 additional master stations and up to 8 door or sub stations. The master can be expanded with AX-16SW add-on selectors for a maximum capacity of 120 door / sub stations. Its streamline design is mountable on a wall or desk.
- General Information
- Manufacturer
- Aiphone Co., Ltd
- Manufacturer Website Address
- http://www.aiphone.com
- Brand Name
- Aiphone
- Product Series
- AX
- Product Type
- Intercom Master Station
- Physical Characteristics
- Product Color
- White
- Form Factor
- Wall Mount
- Height
- 6.9"
- Width
- 7.6"
- Depth
- 1.9"
- Weight (Approximate)
- 1.21 lb
- Miscellaneous
- Additional Information
- 3.5" TFT color video monitor
- 8 master station channels
- 8 door / sub station channels
- LED and call tone annunciation for programmable
- length or infinite call-in
- Hands-free VOX communication or Push-to-Talk
- All Call to other master stations
- Selective calling to any station in the system
- Scan Monitor allows listening to door / sub stations in programmed time increments
- Door release button activates door strike or magnetic lock
- 3.5mm speaker & mic jacks for computer-style headset or handset connection
- Tone and volume adjustments for open voice and headset communication
