- General Information
- Manufacturer
- Aiphone Co., Ltd
- Manufacturer Website Address
- http://www.aiphone.com
- Brand Name
- Aiphone
- Product Series
- LEF
- Product Type
- Intercom Master Station

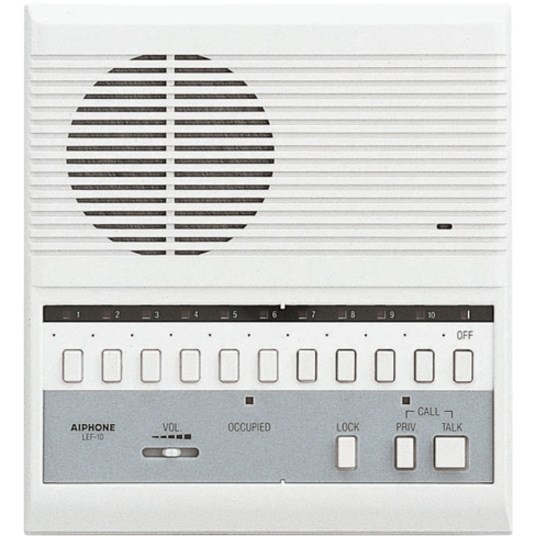

The LEF-10 is a selective calling open voice style master station with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations up to its maximum capacity.
Incoming calls from a sub or door station are annunciated with a momentary electronic mono-tone and an LED, remaining lit for approximately 20 seconds. Communication at the calling master is press-to-talk, release-to-listen. Person at the receiving station speaks hands free. The person at the master station can selectively call and talk with a person at any other sub or master station in the system. The privacy feature on the master and selected subs prevents eavesdropping from the master station. A call can be received, but communication back to the calling master will be heard only after the privacy button is disengaged.
- Technical Information
- Number of Sub Stations Supported
- 11
- Area Coverage
- 1600 ft
- Network & Communication
- Connectivity Technology
- Cable
- Power Description
- Input Voltage
- 12 V DC
- Power Source
- DC Supply
- Physical Characteristics
- Form Factor
- Wall Mount
- Height
- 8.1"
- Width
- 7.5"
- Depth
- 2.2"
- Miscellaneous
- Additional Information
- Fully intermixable system, including any number of masters and subs up to the maximum capacity
- Push-to-talk at calling master, with hands free communication at responding station
- LED annunciation and momentary tone from calling sub or door station
- Large variety of sub stations, surface or flush mount
- Privacy button to prevent eavesdropping
- Voice and call tone volume controls
- Video door entry can be integrated
- Selective door release
- Selective monitoring
- Up to 11 stations
- Application/Usage
- Door Entry
- Door Exit
- Intercom System
- Compatibility
- Aiphone BG-10C Chime/Music Adaptor
- Aiphone PS-1225UL Power Supply
Aiphone Sub/Door Stations:
- LE-Series
- LA-Series
- LS-Series
Aiphone Series Master Stations:
- LEF
- LAF
- Country of Origin
- Japan
