The NetVanta® 3430 is a modular access router that uses RapidRoute technology to deliver the high-packet throughput required for IP telephony, corporate connectivity, and Internet access. This performance enhanced platform delivers wire-speed throughput, even with advanced services enabled like Quality of Service (QoS), NAT, firewall, and VPN.
Modular Hardware

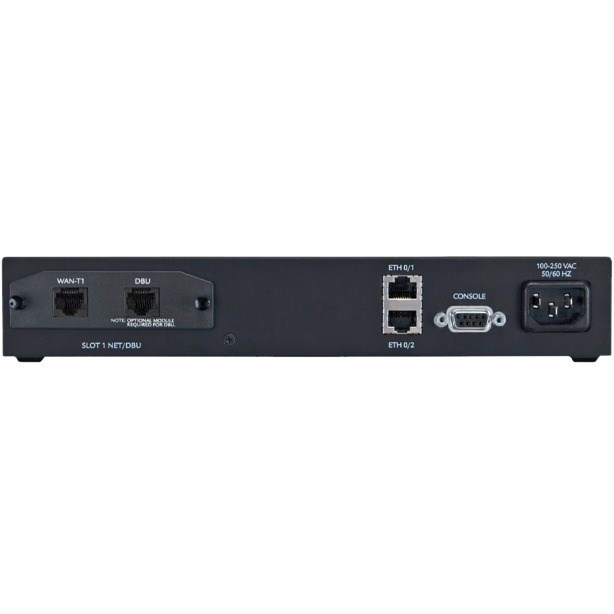

The NetVanta 3430 is a modular, 1U-high, rackmountable metal chassis that offers two 10/100Base-T Ethernet interfaces for WAN access LAN segmentation, DMZ, or even broadband backup. The single slot houses any of the NetVanta Series Network Interface Modules (NIMs) and Dial Backup Interface Modules (DIMs). For dial backup, an analog modem DIM or an ISDN BRI DIM is available, preventing downtime by dialing around a failed circuit to any PPP-compliant device.
- General Information
- Manufacturer
- Adtran
- Manufacturer Website Address
- http://www.adtran.com
- Brand Name
- Adtran
- Product Line
- NetVanta
- Product Series
- 3400
- Product Type
- Router
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Total Number of Ports
- 2
- Powerline
- No
- Management Port
- Yes
- Token Ring Port
- No
- Serial V.35 Interface
- No
- Number of Network (RJ-45) Ports
- 2
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- Network Interface Module (NIM)
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- VoIP Supported
- Yes
- Management & Protocols
- Security Features
- URL filtering
- SPI
- VPN
- IPsec
- NAT
- DoS
- DES
- 3DES
- AES
- PPPoE
- PPPoA
- Multi-level Access Control
- TACACS+
- RADIUS
- AAA
- SSH
- SSL
- IEEE 802.1x
- ACL
- Memory
- Standard Memory
- 128 MB
- Flash Memory
- 32 MB
- Memory Card Supported
- CompactFlash
- Power Description
- PoE (RJ-45) Port
- No
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Wall Mountable
- Desktop
- Height
- 1.7"
- Width
- 10.5"
- Depth
- 5.8"
- Weight (Approximate)
- 8.82 lb
- Miscellaneous
- Certifications & Standards
- IEEE Standards:
- 802.1x
- 802.1Q
